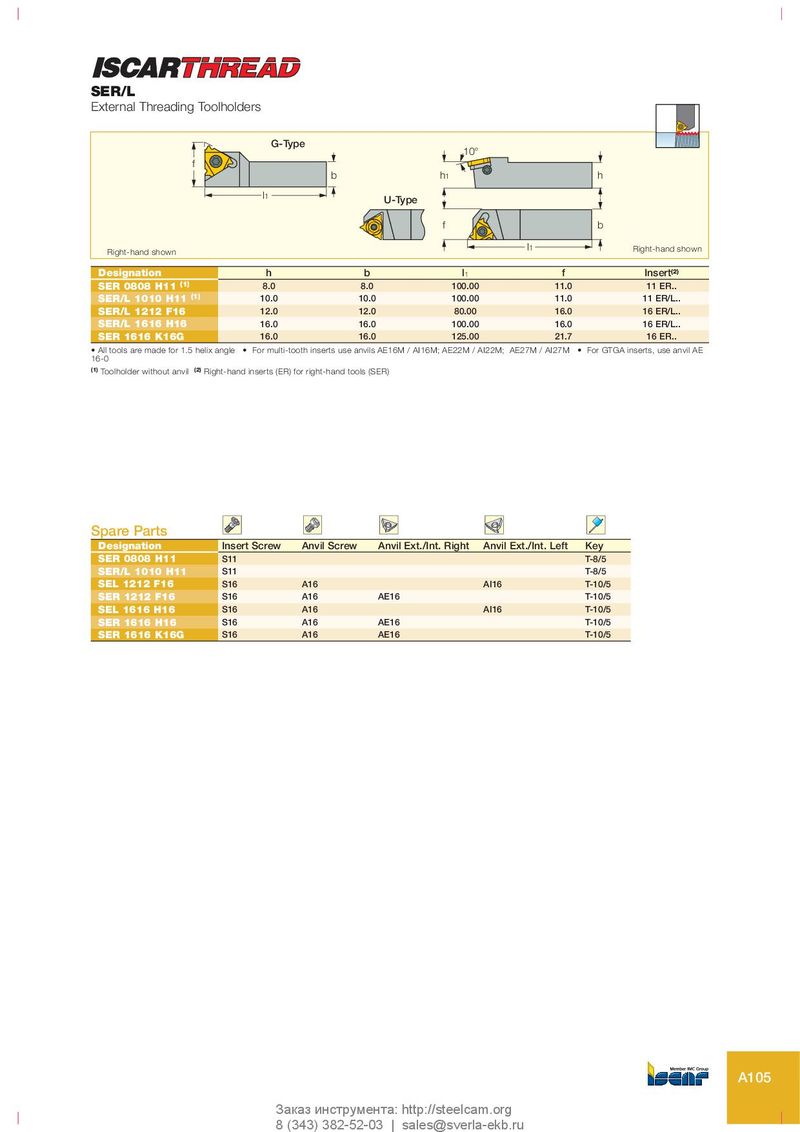

SER/L External Threading Toolholders G-Type 10° f b h1 h l1 U-Type f b Right-hand shown l1 Right-hand shown Designation h b l 1 f Insert (2) SER 0808 H11 (1) 8.0 8.0 100.00 11.0 11 ER.. SER/L 1010 H11 (1) 10.0 10.0 100.00 11.0 11 ER/L.. SER/L 1212 F16 12.0 12.0 80.00 16.0 16 ER/L.. SER/L 1616 H16 16.0 16.0 100.00 16.0 16 ER/L.. SER 1616 K16G 16.0 16.0 125.00 21.7 16 ER.. • All tools are made for 1.5 helix angle • For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M • For GTGA inserts, use anvil AE 16-0 (1) Toolholder without anvil (2) Right-hand inserts (ER) for right-hand tools (SER) Spare Parts Designation Insert Screw Anvil Screw Anvil Ext./Int. Right Anvil Ext./Int. Left Key SER 0808 H11 S11 T-8/5 SER/L 1010 H11 S11 T-8/5 SEL 1212 F16 S16 A16 AI16 T-10/5 SER 1212 F16 S16 A16 AE16 T-10/5 SEL 1616 H16 S16 A16 AI16 T-10/5 SER 1616 H16 S16 A16 AE16 T-10/5 SER 1616 K16G S16 A16 AE16 T-10/5 A105 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
