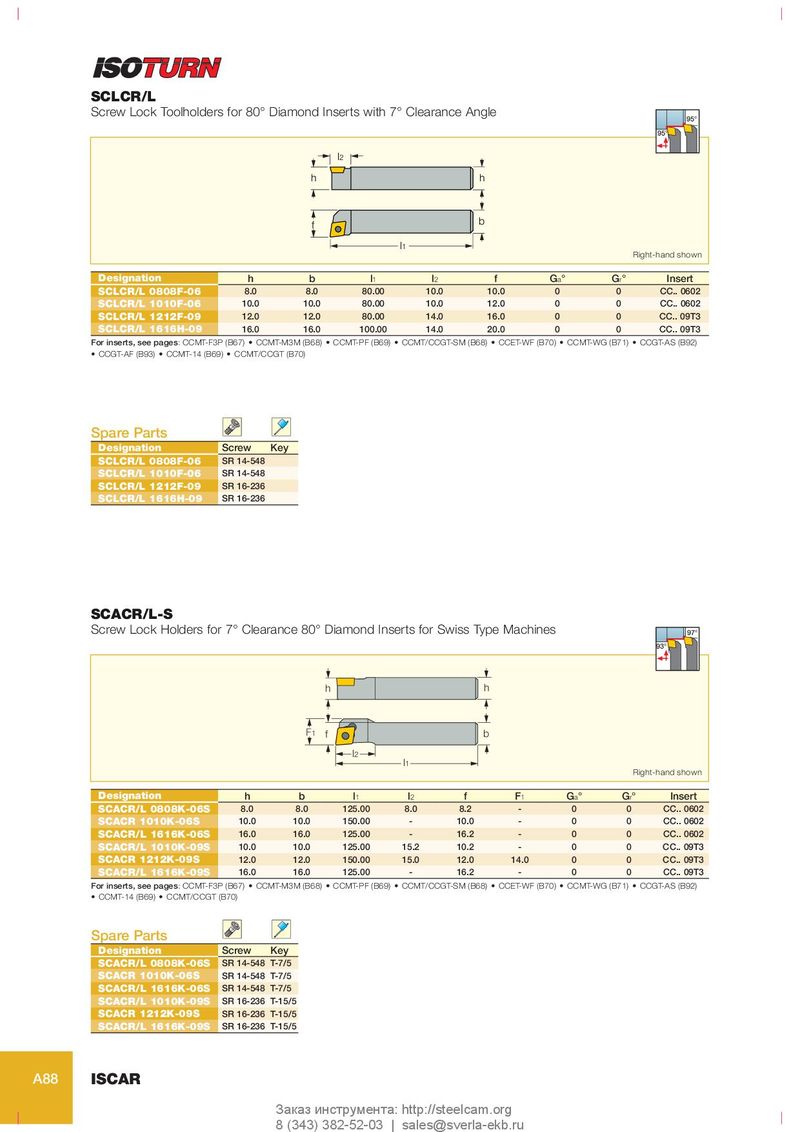

SCLCR/L Screw Lock Toolholders for 80° Diamond Inserts with 7° Clearance Angle 95° 95° l2 h h f b l1 Right-hand shown Designation h b l 1 l 2 f G a ° G r ° Insert SCLCR/L 0808F-06 8.0 8.0 80.00 10.0 10.0 0 0 CC.. 0602 SCLCR/L 1010F-06 10.0 10.0 80.00 10.0 12.0 0 0 CC.. 0602 SCLCR/L 1212F-09 12.0 12.0 80.00 14.0 16.0 0 0 CC.. 09T3 SCLCR/L 1616H-09 16.0 16.0 100.00 14.0 20.0 0 0 CC.. 09T3 For inserts, see pages: CCMT-F3P (B67) • CCMT-M3M (B68) • CCMT-PF (B69) • CCMT/CCGT-SM (B68) • CCET-WF (B70) • CCMT-WG (B71) • CCGT-AS (B92) • CCGT-AF (B93) • CCMT-14 (B69) • CCMT/CCGT (B70) Spare Parts Designation Screw Key SCLCR/L 0808F-06 SR 14-548 SCLCR/L 1010F-06 SR 14-548 SCLCR/L 1212F-09 SR 16-236 SCLCR/L 1616H-09 SR 16-236 SCACR/L-S Screw Lock Holders for 7° Clearance 80° Diamond Inserts for Swiss Type Machines 97° 93° h h F 1 f b l 2 l 1 Right-hand shown Designation h b l 1 l 2 f F 1 G a ° G r ° Insert SCACR/L 0808K-06S 8.0 8.0 125.00 8.0 8.2 - 0 0 CC.. 0602 SCACR 1010K-06S 10.0 10.0 150.00 - 10.0 - 0 0 CC.. 0602 SCACR/L 1616K-06S 16.0 16.0 125.00 - 16.2 - 0 0 CC.. 0602 SCACR/L 1010K-09S 10.0 10.0 125.00 15.2 10.2 - 0 0 CC.. 09T3 SCACR 1212K-09S 12.0 12.0 150.00 15.0 12.0 14.0 0 0 CC.. 09T3 SCACR/L 1616K-09S 16.0 16.0 125.00 - 16.2 - 0 0 CC.. 09T3 For inserts, see pages: CCMT-F3P (B67) • CCMT-M3M (B68) • CCMT-PF (B69) • CCMT/CCGT-SM (B68) • CCET-WF (B70) • CCMT-WG (B71) • CCGT-AS (B92) • CCMT-14 (B69) • CCMT/CCGT (B70) Spare Parts Designation Screw Key SCACR/L 0808K-06S SR 14-548 T-7/5 SCACR 1010K-06S SR 14-548 T-7/5 SCACR/L 1616K-06S SR 14-548 T-7/5 SCACR/L 1010K-09S SR 16-236 T-15/5 SCACR 1212K-09S SR 16-236 T-15/5 SCACR/L 1616K-09S SR 16-236 T-15/5 A88 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
