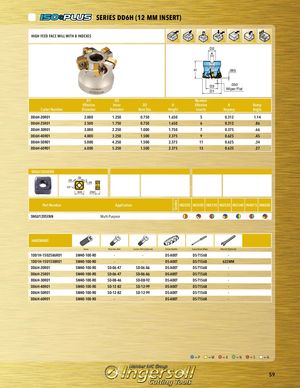

SERIES DD6H (12 MM INSERT) HIGH FEED FACE MILL WITH 8 INDEXES D2 K H .065 D3D1 .050Wiper Flat D1 D3 Number Effective Inner D2 H Effective K Ramp Cutter Number Diameter Diameter Bore Dia. Height Inserts Keyway Angle DD6H-20R01 2.000 1.250 0.750 1.650 5 0.312 1.14 DD6H-25R01 2.500 1.750 0.750 1.650 6 0.312 .86 DD6H-30R01 3.000 2.250 1.000 1.750 7 0.375 .66 DD6H-40R01 4.000 3.250 1.500 2.375 9 0.625 .45 DD6H-50R01 5.000 4.250 1.500 2.375 11 0.625 .34 DD6H-60R01 6.000 5.250 1.500 2.375 13 0.625 .27 SNGU1205ENN .05 .05 .05 15° .500 .250 Part Number Application IN2035 IN2505 IN2510 IN2530 IN2540 IN4015 IN4030 SNGU1205ENN Multi-Purpose HARDWARE Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade Wrench (Optional) 1DD1H-1502586R01 SM40-100-R0 - - DS-A00T DS-T156B - 1DD1H-15015X8R01 SM40-100-R0 - - DS-A00T DS-T156B 622MM DD6H-20R01 SM40-100-R0 SD-06-47 SD-06-A6 DS-A00T DS-T156B - DD6H-25R01 SM40-100-R0 SD-06-47 SD-06-A6 DS-A00T DS-T156B - DD6H-30R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B - DD6H-40R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B - DD6H-50R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B - DD6H-60R01 SM40-100-R0 - - DS-A00T DS-T156B - =P =M =K =N =S =H 59 Grades
