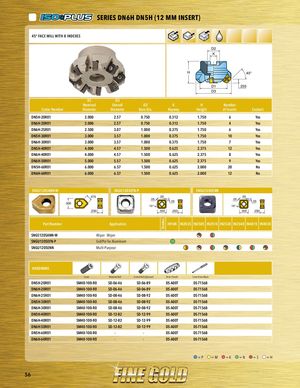

SERIES DN6H DN5H (12 MM INSERT) 45° FACE MILL WITH 8 INDEXES D2 K H 45° D1 .235 D3 D1 D3 Nominal Overall D2 K H Number Cutter Number Diameter Diameter Bore Dia. Keyway Height of Inserts Coolant DN5H-20R01 2.000 2.57 0.750 0.312 1.750 6 Yes DN6H-20R01 2.000 2.57 0.750 0.312 1.750 4 Yes DN6H-25R01 2.500 3.07 1.000 0.375 1.750 6 Yes DN5H-30R01 3.000 3.57 1.000 0.375 1.750 10 Yes DN6H-30R01 3.000 3.57 1.000 0.375 1.750 7 Yes DN5H-40R01 4.000 4.57 1.500 0.625 2.375 12 Yes DN6H-40R01 4.000 4.57 1.500 0.625 2.375 8 Yes DN6H-50R01 5.000 5.57 1.500 0.625 2.375 9 Yes DN5H-60R01 6.000 6.57 1.500 0.625 2.000 20 No DN6H-60R01 6.000 6.57 1.500 0.625 2.000 12 No SNGS1205ANN-W SNGU1205EFN-P SNGU1205ENN .273 .05 .05 .500 .05 .05 .05 .05 15° 15° .250 .500 .250 .500 .250 Part Number Application IN10K IN2035 IN2505 IN2510 IN2530 IN2540 IN4015 IN4030 SNGS1205ANN-W Wiper - Wiper SNGU1205EFN-P Grd/Pol for Aluminum SNGU1205ENN Multi-Purpose HARDWARE Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade DN5H-20R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B DN6H-20R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B DN6H-25R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B DN5H-30R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B DN6H-30R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B DN5H-40R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B DN6H-40R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B DN6H-50R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B DN5H-60R01 SM40-100-R0 - - DS-A00T DS-T156B DN6H-60R01 SM40-100-R0 - - DS-A00T DS-T156B =P =M =K =N =S =H 56 Grades
