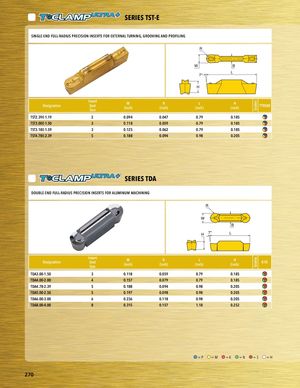

GradesGrades PART SERIES SERIES TST-E SPIANRGTLSEE-ERNIEDSFULL-RADIUS PRECISION INSERTS FOR EXTERNAL TURNING, GROOVING AND PROFILING R W B 7° L H InsertDesignatiaosndfSeatSizeW(inch) R(inch) L(inch) H(inch) TT9080 TST2.39E-1.19 2 0.094 0.047 0.79 0.185 PTlSaTc3e.0h0oEl-d1e.5r0 3 0.118 0.059 0.79 0.185 TST3.18E-1.59 3 0.125 0.062 0.79 0.185 TST4.78E-2.39 5 0.188 0.094 0.98 0.205 SERIES TDA DOUBLE-END FULL-RADIUS PRECISION INSERTS FOR ALUMINUM MACHINING R W B H 7° L Designation InsertSeatSize W(inch) R(inch) L(inch) H(inch) K10 TDA3.00-1.50 3 0.118 0.059 0.79 0.185 TDA4.00-2.00 4 0.157 0.079 0.79 0.185 TDA4.78-2.39 5 0.188 0.094 0.98 0.205 TDA5.00-2.50 5 0.197 0.098 0.98 0.205 TDA6.00-3.00 6 0.236 0.118 0.98 0.205 TDA8.00-4.00 8 0.315 0.157 1.18 0.252 =P =M =K =N =S =H 270
