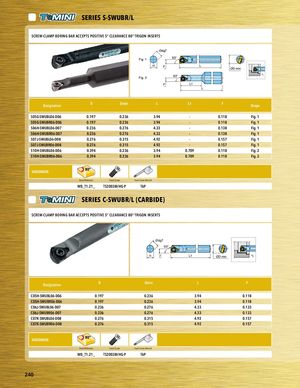

PART SERIES SERIES S-SWUBR/L SPCARRETWSE-CRLIAESMP BORING BAR ACCEPTS POSITIVE 5° CLEARANCE 80° TRIGON INSERTS Ødg7 Fig. 1 93° H F L ØD min Fig. 2 93° F L1 L Designation D Dmin L L1 F Shape S05G-SWUBL06-D06 0.197 0.236 3.94 - 0.118 Fig. 1 PSla0c5eGh-SoWldUBeRr06-D06 0.197 0.236 3.94 - 0.118 Fig. 1 S06H-SWUBL06-D07 0.236 0.276 4.33 - 0.138 Fig. 1 S06H-SWUBR06-D07 0.236 0.276 4.33 - 0.138 Fig. 1 S07J-SWUBL06-D08 0.276 0.315 4.92 - 0.157 Fig. 1 S07J-SWUBR06-D08 0.276 0.315 4.92 - 0.157 Fig. 1 SH1A0RHD-SWWAURBEL06-D06 0.394 0.236 3.94 0.709 0.118 Fig. 2 S10H-SWUBR06-D06 0.394 0.236 3.94 0.709 0.118 Fig. 2 hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 HARDWARE Insert Reference Insert Screw Insert Screw Wrench WB_T1.21_ TS20038I/HG-P T6P PART SERIES SERIES C-SWUBR/L (CARBIDE) SPCARRETWSE-CRLIAESMP BORING BAR ACCEPTS POSITIVE 5° CLEARANCE 80° TRIGON INSERTS Ødg7 93° h f L1 ØD min Designation D Dmin L F C05H-SWUBL06-D06 0.197 0.236 3.94 0.118 PCla0c5eHh-SoWldUeBrR06-D06 0.197 0.236 3.94 0.118 C06J-SWUBL06-D07 0.236 0.276 4.33 0.133 C06J-SWUBR06-D07 0.236 0.276 4.33 0.133 C07K-SWUBL06-D08 0.276 0.315 4.92 0.157 C07K-SWUBR06-D08 0.276 0.315 4.92 0.157 HARDWARE HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 Insert Reference Insert Screw Insert Screw Wrench WB_T1.21_ TS20038I/HG-P T6P 240
