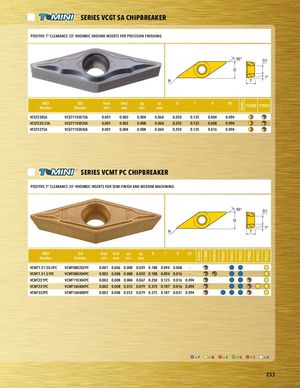

Grades CT3000 PV3010 TT8105 TT8115 GradesTT8125 TT9080 TT9215 TT9225 PART SERIES SERIES VCGT SA CHIPBREAKER PAORSTITSIVEREI7E°S CLEARANCE 35° RHOMBIC GROUND INSERTS FOR PRECISION FINISHING 35° D1 D 7° R T ANSINumber asdf ISONumber feed feed ap ap DminmaxminmaxT R D1 TT5080 TT9020 VCGT220SA VCGT110301SA 0.001 0.003 0.004 0.060 0.250 0.125 0.004 0.094 PVlaCcGeTh22o0ld.5eSrA VCGT110302SA 0.001 0.003 0.008 0.060 0.250 0.125 0.008 0.094 VCGT221SA VCGT110304SA 0.001 0.004 0.008 0.060 0.250 0.125 0.016 0.094 SERIES VCMT PC CHIPBREAKER POSITIVE 7° CLEARANCE 35° RHOMBIC INSERTS FOR SEMI-FINISH AND MEDIUM MACHINING PART SERIES PART SERIES 35° D1 D 7° R T ANSI ISO feed feed ap ap D T R D1 Number Number min max min max VCMT1.51.50.5PC VCMT080202PC 0.001 0.006 0.008 0.059 0.188 0.094 0.008 - VCMT1.51.51PC VCMT080204PC 0.002 0.008 0.008 0.059 0.188 0.094 0.016 - VCMT221PC asdf VCMT110304PC 0.002 0.008 0.004 0.067 0.250 0.125 0.016 0.094 VCMT331PC VCMT160404PC 0.002 0.008 0.012 0.079 0.375 0.187 0.016 0.094 VCMT332PC VCMT160408PC 0.003 0.008 0.012 0.079 0.375 0.187 0.031 0.094 Placeholder =P =M =K =N =S =H 233
