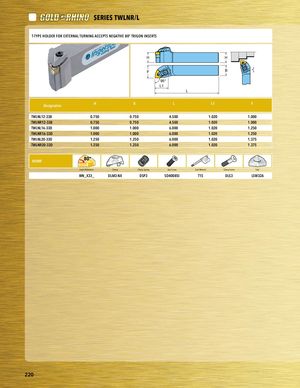

PART SERIES SERIES TWLNR/L PT-ATYRPTESEHROIELDS ER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 80° TRIGON INSERTS H H F B 95° L1 L Designation H B L L1 F TWLNL12-33B 0.750 0.750 4.500 1.020 1.000 PTlaWcLeNhRo1l2d-3e3rB 0.750 0.750 4.500 1.020 1.000 TWLNL16-33D 1.000 1.000 6.000 1.020 1.250 TWLNR16-33D 1.000 1.000 6.000 1.020 1.250 TWLNL20-33D 1.250 1.250 6.000 1.020 1.375 TWLNR20-33D 1.250 1.250 6.000 1.020 1.375 HARDWARE HDWR hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 Insert Reference Clamp Clamp Spring Seat Screw Seat Wrench Clamp Screw Seat WN_X33_ DLM3-NX DSP3 SO40085I T15 DLS3 LSW32A PART SERIES PART SERIES Placeholder HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 220
