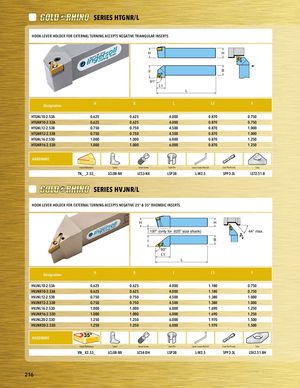

PART SERIES SERIES HTGNR/L PHAOROTKS-ELERVIEESR HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE TRIANGULAR INSERTS H H F B 91° L1 L Designation H B L L1 F HTGNL10-2.53A 0.625 0.625 4.000 0.870 0.750 PHlaTcGeNhRo1l0d-2e.r53A 0.625 0.625 4.000 0.870 0.750 HTGNL12-2.53B 0.750 0.750 4.500 0.870 1.000 HTGNR12-2.53B 0.750 0.750 4.500 0.870 1.000 HTGNL16-2.53D 1.000 1.000 6.000 0.870 1.250 HTGNR16-2.53D 1.000 1.000 6.000 0.870 1.250 HARDWARE HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat TN_ _2.53_ LCL08-NX LCS3-NX LSP3B L-W2.5 SPP3-3L LST2.51.8 SERIES HVJNR/L PART SERIES HOOK-LEVER HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 25° & 35° RHOMBIC INSERTS PART SERIES H H .197” (only for .625” size shank) 44° max. f B 93° L1 L Designation H B L L1 F HVJNL10-2.53A 0.625 0.625 4.000 1.180 0.750 HVJNR10-2.53A 0.625 0.625 4.000 1.180 0.750 HVJNL12-2.53B 0.750 0.750 4.500 1.380 1.000 PHlaVcJeNhRo1l2d-2e.r53B 0.750 0.750 4.500 1.380 1.000 HVJNL16-2.53D 1.000 1.000 6.000 1.690 1.250 HVJNR16-2.53D 1.000 1.000 6.000 1.690 1.250 HVJNL20-2.53D 1.250 1.250 6.000 1.970 1.500 HVJNR20-2.53D 1.250 1.250 6.000 1.970 1.500 HARDWARE HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 Insert Reference Lever Lever Screw Seat Pin Lever Screw Wrench Seat Pin Punch Seat VN_ X2.53_ LCL08-NX LCS4-DH LSP3B L-W2.5 SPP3-3L LSV2.51.8H 216
