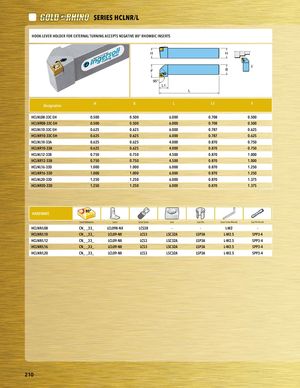

PART SERIES SERIES HCLNR/L PHAOROTKS-ELERVIEESR HOLDER FOR EXTERNAL TURNING ACCEPTS NEGATIVE 80° RHOMBIC INSERTS H H F B 95° L1 L Designation H B L L1 F HCLNL08-33C-SH 0.500 0.500 6.000 0.708 0.500 PHlaCcLeNhRo0l8d-3e3rC-SH 0.500 0.500 6.000 0.708 0.500 HCLNL10-33C-SH 0.625 0.625 6.000 0.787 0.625 HCLNR10-33C-SH 0.625 0.625 6.000 0.787 0.625 HCLNL10-33A 0.625 0.625 4.000 0.870 0.750 HCLNR10-33A 0.625 0.625 4.000 0.870 0.750 HCLNL12-33B 0.750 0.750 4.500 0.870 1.000 HCLNR12-33B 0.750 0.750 4.500 0.870 1.000 HCLNL16-33D 1.000 1.000 6.000 0.870 1.250 HCLNR16-33D 1.000 1.000 6.000 0.870 1.250 HCLNL20-33D 1.250 1.250 6.000 0.870 1.375 HCLNR20-33D 1.250 1.250 6.000 0.870 1.375 HARDWARE Insert Reference Lever Lever Screw Seat Seat Pin Lever Screw Wrench Seat Pin Punch HCLNR/L08 CN_ _33_ LCL09B-NX LCS3B - - L-W2 - HCLNR/L10 CN_ _33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 SPP3-4 HCLNR/L12 CN_ _33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 SPP3-4 HCLNR/L16 CN_ _33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 SPP3-4 HCLNR/L20 CN_ _33_ LCL09-NX LCS3 LSC32A LSP3A L-W2.5 SPP3-4 HARDWARE hardware desc 1 hardware desc 2 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 210
