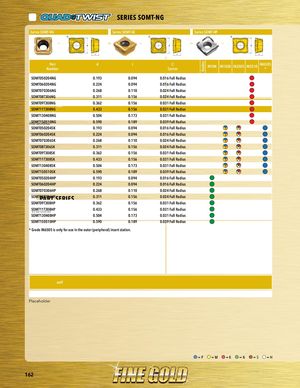

Общий каталог Ingersoll 2016 - 2017 - страница 164

Grades PART SERIES SERIES SOMT-NG Series SOMT-NG Series SOMT-SK Series SOMT-HP PART SERIES PartNumber d t CCorner IN10K IN1030 IN2505 IN2510 IN6505* SOMT050204NG 0.193 0.094 0.016 Full Radius SOMT060204NG 0.224 0.094 0.016 Full Radius SOMT070306NG 0.268 0.110 0.024 Full Radius SOMT08T306NG 0.311 0.156 0.024 Full Radius SOMT09T308NG asdf 0.362 0.156 0.031 Full Radius SOMT11T308NG 0.433 0.156 0.031 Full Radius SOMT130408NG 0.504 0.173 0.031 Full Radius PSlaOcMeTh1o5l0d5e1r0NG 0.590 0.189 0.039 Full Radius SOMT050204SK 0.193 0.094 0.016 Full Radius SOMT060204SK 0.224 0.094 0.016 Full Radius SOMT070306SK 0.268 0.110 0.024 Full Radius SOMT08T306SK 0.311 0.156 0.024 Full Radius SOMT09T308SK 0.362 0.156 0.031 Full Radius SOMT11T308SK 0.433 0.156 0.031 Full Radius SOMT130408SK 0.504 0.173 0.031 Full Radius SOMT150510SK 0.590 0.189 0.039 Full Radius SOMT050204HP 0.193 0.094 0.016 Full Radius SOMT060204HP 0.224 0.094 0.016 Full Radius SOMT070306HP 0.268 0.110 0.024 Full Radius SOMTP08AT3R06THPSERIES 0.311 0.156 0.024 Full Radius SOMT09T308HP 0.362 0.156 0.031 Full Radius SOMT11T308HP 0.433 0.156 0.031 Full Radius SPOAMRTT1S3E0R4IE0S8HP 0.504 0.173 0.031 Full Radius SOMT150510HP 0.590 0.189 0.039 Full Radius * Grade IN6505 is only for use in the outer (peripheral) insert station. asdf Placeholder =P =M =K =N =S =H 162
