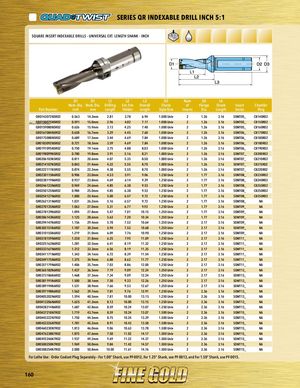

PART SERIES SERIES QR INDEXABLE DRILL INCH 5:1 PSQARUTASREERIINESERT INDEXABLE DRILLS - UNIVERSAL EXT. LENGTH SHANK - INCH D1 D1 L1 L2 L3 D2 Num D3 L4 Nom. Dia. Nom. Dia. Drilling Ext. frm Overall Shank of Flange Shank Insert Chamfer Part Number inch mm Length Holder Length Style/Size Inserts Dia. Length Series Ring QR0143072N5R02 0.563 14.3mm 2.81 3.78 6.94 1.000 Univ 2 1.26 3.16 SOMT05_ CB140R02 PlacQeRh0o15ld00e7r5N5R02 0.591 15.0mm 2.96 4.02 7.17 1.000 Univ 2 1.26 3.16 SOMT05_ CB150R02 QR0159080N5R02 0.626 15.9mm 3.13 4.25 7.40 1.000 Univ 2 1.26 3.16 SOMT05_ CB160R02 QR0167084N5R02 0.658 16.7mm 3.29 4.45 7.60 1.000 Univ 2 1.26 3.16 SOMT06_ CB170R02 QR0175088N5R02 0.689 17.5mm 3.44 4.69 7.84 1.000 Univ 2 1.26 3.16 SOMT06_ CB180R02 QR0183092N5R02 0.721 18.3mm 3.59 4.69 7.84 1.000 Univ 2 1.26 3.16 SOMT06_ CB180R02 QR0191095N5R02 0.750 19.1mm 3.75 4.88 8.03 1.000 Univ 2 1.26 3.16 SOMT06_ CB190R02 QR0198099N5R02 0.780 19.8mm 3.91 5.16 8.31 1.000 Univ 2 1.26 3.16 SOMT07_ CB200R02 QR0206103N5R02 0.811 20.6mm 4.07 5.35 8.50 1.000 Univ 2 1.26 3.16 SOMT07_ CB210R02 QR0214107N5R02 0.843 21.4mm 4.22 5.55 8.70 1.000 Univ 2 1.26 3.16 SOMT07_ CB210R02 QR0222111N5R02 0.874 22.2mm 4.38 5.55 8.70 1.000 Univ 2 1.26 3.16 SOMT07_ CB220R02 QR0230115N6R02 0.906 23.0mm 4.53 5.91 9.06 1.250 Univ 2 1.77 3.16 SOMT08_ CB230R02 QR0238119N6R02 0.937 23.8mm 4.69 6.14 9.29 1.250 Univ 2 1.77 3.16 SOMT08_ CB240R02 QR0246123N6R02 0.969 24.6mm 4.85 6.38 9.53 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02 QR0250125N6R02 0.984 25.0mm 4.85 6.38 9.53 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02 QR0254127N6R02 1.000 25.4mm 5.00 6.57 9.72 1.250 Univ 2 1.77 3.16 SOMT08_ CB250R02 QR0262131N6R02 1.031 26.2mm 5.16 6.57 9.72 1.250 Univ 2 1.77 3.16 SOMT08_ NA QR0270135N6R02 1.063 27.0mm 5.31 6.77 9.92 1.250 Univ 2 1.77 3.16 SOMT09_ NA QR0278139N6R02 1.094 27.8mm 5.47 7.01 10.15 1.250 Univ 2 1.77 3.16 SOMT09_ NA QR0286143N6R02 1.125 28.6mm 5.63 7.20 10.34 1.250 Univ 2 1.77 3.16 SOMT09_ NA QR0294147N6R02 1.156 29.4mm 5.78 7.52 10.64 1.250 Univ 2 2.17 3.16 SOMT09_ NA QR0302151N6R02 1.187 30.2mm 5.94 7.52 10.68 1.250 Univ 2 2.17 3.16 SOMT09_ NA QR0310155N6R02 1.219 31.0mm 6.09 7.76 10.90 1.250 Univ 2 2.17 3.16 SOMT09_ NA QR0318159N6R02 1.250 31.8mm 6.25 7.95 11.09 1.250 Univ 2 2.17 3.16 SOMT11_ NA QR0325163N6R02 1.281 32.5mm 6.41 8.19 11.32 1.250 Univ 2 2.17 3.16 SOMT11_ NA QR0333167N6R02 1.312 33.3mm 6.56 8.19 11.35 1.250 Univ 2 2.17 3.16 SOMT11_ NA QR0341171N6R02 1.343 34.1mm 6.72 8.39 11.54 1.250 Univ 2 2.17 3.16 SOMT11_ NA QR0349175N6R02 1.375 34.9mm 6.88 8.62 11.77 1.250 Univ 2 2.17 3.16 SOMT11_ NA QR0357179N6R02 1.406 35.7mm 7.03 8.86 12.00 1.250 Univ 2 2.17 3.16 SOMT11_ NA QR0365182N6R02 1.437 36.5mm 7.19 9.09 12.24 1.250 Univ 2 2.17 3.16 SOMT13_ NA QR0373186N6R02 1.468 37.3mm 7.34 9.09 12.24 1.250 Univ 2 2.17 3.16 SOMT13_ NA QR0381191N6R02 1.500 38.1mm 7.50 9.33 12.26 1.250 Univ 2 2.17 3.16 SOMT13_ NA QR0389194N6R02 1.531 38.9mm 7.66 9.53 12.67 1.250 Univ 2 2.17 3.16 SOMT13_ NA QR0397198N6R02 1.562 39.7mm 7.81 9.76 12.91 1.250 Univ 2 2.36 3.16 SOMT13_ NA QR0405202N6R02 1.594 40.5mm 7.81 10.00 13.15 1.250 Univ 2 2.36 3.16 SOMT13_ NA QR0413206N6R02 1.625 41.3mm 8.13 10.00 13.15 1.250 Univ 2 2.36 3.16 SOMT13_ NA QR0428214N6R02 1.687 42.8mm 8.59 10.24 13.07 1.250 Univ 2 2.36 3.16 SOMT13_ NA QR0437218N7R02 1.719 43.7mm 8.59 10.24 13.07 1.500 Univ 2 2.36 3.16 SOMT15_ NA QR0445222N7R02 1.750 44.5mm 8.75 10.24 13.39 1.500 Univ 2 2.36 3.16 SOMT15_ NA QR0452226N7R02 1.781 45.2mm 8.91 10.43 13.58 1.500 Univ 2 2.36 3.16 SOMT15_ NA QR0460230N7R02 1.813 46.0mm 9.06 10.63 13.78 1.500 Univ 2 2.36 3.16 SOMT15_ NA QR0476238N7R02 1.875 47.6mm 7.50 11.02 14.17 1.500 Univ 2 2.36 3.16 SOMT15_ NA QR0492246N7R02 1.937 49.2mm 9.69 11.22 14.37 1.500 Univ 2 2.36 3.16 SOMT15_ NA QR0500250N7R02 1.969 50.0mm 9.84 11.42 14.57 1.500 Univ 2 2.36 3.16 SOMT15_ NA QR0508254N7R02 2.000 50.8mm 10.00 11.61 14.76 1.500 Univ 2 2.36 3.16 SOMT15_ NA For Lathe Use: Order Coolant Plug Separately – For 1.00” Shank, use PF-0012, For 1.25” Shank, use PF-0013, and For 1.50” Shank, use PF-0015. 160
