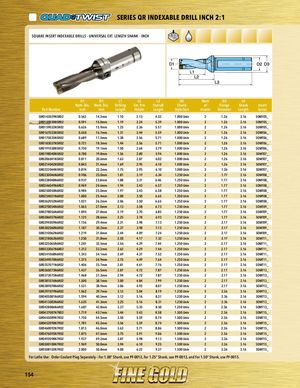

Общий каталог Ingersoll 2016 - 2017 - страница 156

PART SERIES SERIES QR INDEXABLE DRILL INCH 2:1 PSQARUTASREERIINESERT INDEXABLE DRILLS - UNIVERSAL EXT. LENGTH SHANK - INCH D1 D1 L1 L2 L3 D2 Num D3 L4 Nom. Dia. Nom. Dia. Drilling Ext. frm Overall Shank of Flange Shank Insert Part Number inch mm Length Holder Length Style/Size Inserts Diameter Length Series QR0143029N5R02 0.563 14.3mm 1.10 2.13 4.33 1.000 Univ 2 1.26 3.16 SOMT05_ PlacehQRo0ld15e0r030N5R02 0.591 15.0mm 1.19 2.24 5.39 1.000 Univ 2 1.26 3.16 SOMT05_ QR0159032N5R02 0.626 15.9mm 1.25 2.36 5.51 1.000 Univ 2 1.26 3.16 SOMT05_ QR0167033N5R02 0.658 16.7mm 1.31 2.44 5.59 1.000 Univ 2 1.26 3.16 SOMT06_ QR0175035N5R02 0.689 17.5mm 1.38 2.56 5.71 1.000 Univ 2 1.26 3.16 SOMT06_ QR0183037N5R02 0.721 18.3mm 1.44 2.56 5.71 1.000 Univ 2 1.26 3.16 SOMT06_ QR0191038N5R02 0.750 19.1mm 1.50 2.64 5.79 1.000 Univ 2 1.26 3.16 SOMT06_ QR0198040N5R02 0.780 19.8mm 1.56 2.80 5.94 1.000 Univ 2 1.26 3.16 SOMT07_ QR0206041N5R02 0.811 20.6mm 1.63 2.87 6.02 1.000 Univ 2 1.26 3.16 SOMT07_ QR0214042N5R02 0.843 21.4mm 1.69 2.95 6.10 1.000 Univ 2 1.26 3.16 SOMT07_ QR0222044N5R02 0.874 22.2mm 1.75 2.95 6.10 1.000 Univ 2 1.26 3.16 SOMT07_ QR0230046N6R02 0.906 23.0mm 1.81 3.19 6.34 1.250 Univ 2 1.77 3.16 SOMT08_ QR0238048N6R02 0.937 23.8mm 1.88 3.31 6.46 1.250 Univ 2 1.77 3.16 SOMT08_ QR0246049N6R02 0.969 24.6mm 1.94 3.43 6.57 1.250 Univ 2 1.77 3.16 SOMT08_ QR0250050N6R02 0.984 25.0mm 1.97 3.43 6.58 1.250 Univ 2 1.77 3.16 SOMT08_ QR0254051N6R02 1.000 25.4mm 2.00 3.50 6.65 1.250 Univ 2 1.77 3.16 SOMT08_ QR0262052N6R02 1.031 26.2mm 2.06 3.50 6.65 1.250 Univ 2 1.77 3.16 SOMT08_ QR0270054N6R02 1.063 27.0mm 2.13 3.58 6.73 1.250 Univ 2 1.77 3.16 SOMT09_ QR0278056N6R02 1.094 27.8mm 2.19 3.70 6.85 1.250 Univ 2 1.77 3.16 SOMT09_ QR0286057N6R02 1.125 28.6mm 2.25 3.78 6.93 1.250 Univ 2 1.77 3.16 SOMT09_ QR0294059N6R02 1.156 29.4mm 2.31 3.98 7.13 1.250 Univ 2 2.17 3.16 SOMT09_ QR0302060N6R02 1.187 30.2mm 2.37 3.98 7.13 1.250 Univ 2 2.17 3.16 SOMT09_ QR0310062N6R02 1.219 31.0mm 2.44 4.09 7.24 1.250 Univ 2 2.17 3.16 SOMT09_ QR0318063N6R02 1.250 31.8mm 2.50 4.17 7.32 1.250 Univ 2 2.17 3.16 SOMT11_ QR0325065N6R02 1.281 32.5mm 2.56 4.29 7.44 1.250 Univ 2 2.17 3.16 SOMT11_ QR0333067N6R02 1.312 33.3mm 2.62 4.29 7.44 1.250 Univ 2 2.17 3.16 SOMT11_ QR0341068N6R02 1.343 34.1mm 2.69 4.37 7.52 1.250 Univ 2 2.17 3.16 SOMT11_ QR0349070N6R02 1.375 34.9mm 2.75 4.49 7.64 1.250 Univ 2 2.17 3.16 SOMT11_ QR0357071N6R02 1.406 35.7mm 2.81 4.61 7.76 1.250 Univ 2 2.17 3.16 SOMT11_ QR0365073N6R02 1.437 36.5mm 2.87 4.72 7.87 1.250 Univ 2 2.17 3.16 SOMT13_ QR0373075N6R02 1.468 37.3mm 2.94 4.72 7.87 1.250 Univ 2 2.17 3.16 SOMT13_ QR0381076N6R02 1.500 38.1mm 3.00 4.84 7.99 1.250 Univ 2 2.17 3.16 SOMT13_ QR0389078N6R02 1.531 38.9mm 3.06 4.92 8.07 1.250 Univ 2 2.17 3.16 SOMT13_ QR0397079N6R02 1.562 39.7mm 3.12 5.04 8.19 1.250 Univ 2 2.36 3.16 SOMT13_ QR0405081N6R02 1.594 40.5mm 3.12 5.16 8.31 1.250 Univ 2 2.36 3.16 SOMT13_ QR0413083N6R02 1.625 41.3mm 3.25 5.16 8.31 1.250 Univ 2 2.36 3.16 SOMT13_ QR0428086N6R02 1.687 42.8mm 3.37 5.35 8.50 1.250 Univ 2 2.36 3.16 SOMT13_ QR0437087N7R02 1.719 43.7mm 3.44 5.43 8.58 1.500 Univ 2 2.36 3.16 SOMT15_ QR0445089N7R02 1.750 44.5mm 3.50 5.59 8.74 1.500 Univ 2 2.36 3.16 SOMT15_ QR0452090N7R02 1.781 45.2mm 3.56 5.59 8.74 1.500 Univ 2 2.36 3.16 SOMT15_ QR0460092N7R02 1.813 46.0mm 3.63 5.71 8.86 1.500 Univ 2 2.36 3.16 SOMT15_ QR0476095N7R02 1.875 47.6mm 3.75 5.91 9.06 1.500 Univ 2 2.36 3.16 SOMT15_ QR0492098N7R02 1.937 49.2mm 3.87 5.98 9.13 1.500 Univ 2 2.36 3.16 SOMT15_ QR0500100N7R02 1.969 50.0mm 3.94 6.10 9.25 1.500 Univ 2 2.36 3.16 SOMT15_ QR0508102N7R02 2.000 50.8mm 4.00 6.22 9.37 1.500 Univ 2 2.36 3.16 SOMT15_ For Lathe Use: Order Coolant Plug Separately – For 1.00” Shank, use PF-0012, For 1.25” Shank, use PF-0013, and For 1.50” Shank, use PF-0015. 154
