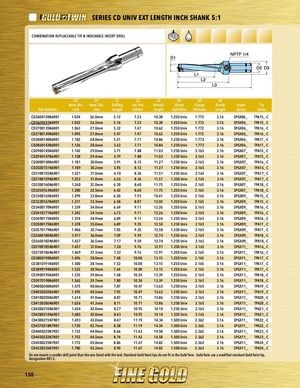

PART SERIES SERIES CD UNIV EXT LENGTH INCH SHANK 5:1 PCAORMTBSIENRAITEISON REPLACEABLE TIP & INDEXABLE INSERT DRILL D1 D1 L1 L2 L3 D2 D3 L4 Nom. Dia. Nom. Dia. Drilling Ext. frm Overall Shank Flange Shank Insert Tip Part Number inch mm Length Holder Length Style/Size Diameter Length Series Series CD2600130N6R01 1.024 26.0mm 5.12 7.23 10.38 1.250 Univ 1.772 3.16 SPGX06_ TPA15_-C PClaDc2e6h2o0l1d3e1rN6R01 1.032 26.2mm 5.16 7.23 10.38 1.250 Univ 1.772 3.16 SPGX06_ TPA15_-C CD2700135N6R01 1.063 27.0mm 5.32 7.47 10.62 1.250 Univ 1.772 3.16 SPGX06_ TPA16_-C CD2780139N6R01 1.095 27.8mm 5.47 7.47 10.62 1.250 Univ 1.772 3.16 SPGX06_ TPA16_-C CD2800140N6R01 1.102 28.0mm 5.51 7.71 10.86 1.250 Univ 1.772 3.16 SPGX06_ TPA17_-C CD2860143N6R01 1.126 28.6mm 5.63 7.71 10.86 1.250 Univ 1.772 3.16 SPGX06_ TPA17_-C CD2900145N6R01 1.142 29.0mm 5.71 7.88 11.03 1.250 Univ 2.165 3.16 SPGX07_ TPA15_-C CD2940147N6R01 1.158 29.4mm 5.79 7.88 11.03 1.250 Univ 2.165 3.16 SPGX07_ TPA15_-C CD3000150N6R01 1.181 30.0mm 5.91 8.12 11.27 1.250 Univ 2.165 3.16 SPGX07_ TPA16_-C CD3020151N6R01 1.189 30.2mm 5.95 8.12 11.27 1.250 Univ 2.165 3.16 SPGX07_ TPA16_-C CD3100155N6R01 1.221 31.0mm 6.10 8.36 11.51 1.250 Univ 2.165 3.16 SPGX07_ TPA17_-C CD3180159N6R01 1.252 31.8mm 6.26 8.36 11.51 1.250 Univ 2.165 3.16 SPGX07_ TPA17_-C CD3200160N6R01 1.260 32.0mm 6.30 8.60 11.75 1.250 Univ 2.165 3.16 SPGX07_ TPA18_-C CD3250163N6R01 1.280 32.5mm 6.42 8.60 11.75 1.250 Univ 2.165 3.16 SPGX07_ TPA18_-C CD3300165N6R01 1.299 33.0mm 6.50 7.93 10.61 1.250 Univ 2.165 3.16 SPGX09_ TPA15_-C CD3330167N6R01 1.311 33.3mm 6.58 8.87 12.02 1.250 Univ 2.165 3.16 SPGX09_ TPA15_-C CD3400170N6R01 1.339 34.0mm 6.69 9.11 12.26 1.250 Univ 2.165 3.16 SPGX09_ TPA16_-C CD3410171N6R01 1.343 34.1mm 6.73 9.11 12.26 1.250 Univ 2.165 3.16 SPGX09_ TPA16_-C CD3490175N6R01 1.374 34.9mm 6.89 9.11 12.26 1.250 Univ 2.165 3.16 SPGX09_ TPA16_-C CD3500175N6R01 1.378 35.0mm 6.89 9.35 12.50 1.250 Univ 2.165 3.16 SPGX09_ TPA17_-C CD3570179N6R01 1.406 35.7mm 7.05 9.35 12.50 1.250 Univ 2.165 3.16 SPGX09_ TPA17_-C CD3600180N6R01 1.417 36.0mm 7.09 9.59 12.74 1.250 Univ 2.165 3.16 SPGX09_ TPA18_-C CD3650182N6R01 1.437 36.5mm 7.17 9.59 12.74 1.250 Univ 2.165 3.16 SPGX09_ TPA18_-C CD3700185N6R01 1.457 37.0mm 7.28 9.76 12.91 1.250 Univ 2.165 3.16 SPGX11_ TPA16_-C CD3730186N6R01 1.469 37.3mm 7.32 9.76 12.91 1.250 Univ 2.165 3.16 SPGX11_ TPA16_-C CD3800190N6R01 1.496 38.0mm 7.48 10.00 13.15 1.250 Univ 2.165 3.16 SPGX11_ TPA17_-C CD3810191N6R01 1.500 38.1mm 7.52 10.00 13.15 1.250 Univ 2.165 3.16 SPGX11_ TPA17_-C CD3890194N6R01 1.532 38.9mm 7.64 10.00 13.15 1.250 Univ 2.165 3.16 SPGX11_ TPA17_-C CD3900195N6R01 1.535 39.0mm 7.68 10.24 13.39 1.250 Univ 2.165 3.16 SPGX11_ TPA18_-C CD3970198N6R01 1.563 39.7mm 7.80 10.24 13.39 1.250 Univ 2.165 3.16 SPGX11_ TPA18_-C CD4000200N6R01 1.575 40.0mm 7.87 10.47 13.62 1.250 Univ 2.165 3.16 SPGX11_ TPA19_-C CD4050202N6R01 1.595 40.5mm 7.95 10.47 13.62 1.250 Univ 2.165 3.16 SPGX11_ TPA19_-C CD4100205N6R01 1.614 41.0mm 8.07 10.71 13.86 1.250 Univ 2.165 3.16 SPGX11_ TPA20_-C CD4130206N6R01 1.626 41.3mm 8.11 10.71 13.86 1.250 Univ 2.165 3.16 SPGX11_ TPA20_-C CD4200210N6R01 1.654 42.0mm 8.27 10.95 14.10 1.250 Univ 2.165 3.16 SPGX11_ TPA21_-C CD4280214N6R01 1.685 42.8mm 8.43 10.95 14.10 1.250 Univ 2.165 3.16 SPGX11_ TPA21_-C CD4300215N7R01 1.693 43.0mm 8.47 11.19 14.34 1.500 Univ 2.362 3.16 SPGX11_ TPA22_-C CD4370218N7R01 1.720 43.7mm 8.58 11.19 14.34 1.500 Univ 2.362 3.16 SPGX11_ TPA22_-C CD4400220N7R01 1.732 44.0mm 8.66 11.43 14.58 1.500 Univ 2.362 3.16 SPGX11_ TPA23_-C CD4450222N7R01 1.752 44.5mm 8.74 11.43 14.58 1.500 Univ 2.362 3.16 SPGX11_ TPA23_-C CD4500225N7R01 1.772 45.0mm 8.86 11.67 14.82 1.500 Univ 2.362 3.16 SPGX11_ TPA24_-C CD4520226N7R01 1.780 45.2mm 8.90 11.67 14.82 1.500 Univ 2.362 3.16 SPGX11_ TPA24_-C Do not mount a smaller drill point than the one listed with the tool. Standard Gold-Twist tips do not fit in the Gold Twin. Gold-Twin use a modified standard Gold-Twist tip, designation R01-C. 150
