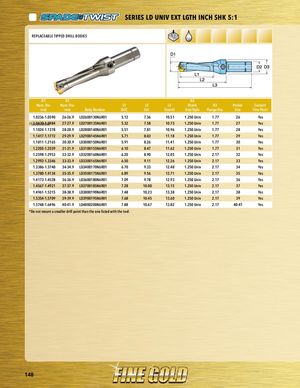

PART SERIES SERIES LD UNIV EXT LGTH INCH SHK 5:1 PRAEPRLTASCEERAIEBSLE TIPPED DRILL BODIES D1 D1 D2 Nom. Dia. Nom. Dia. L1 L2 L3 Shank D3 Pocket Coolant inch mm Body Number DOC Ext. Overall Size/Style Flange Dia. Size Thru Point 1.0236-1.0590 26-26.9 LD2600130N6R01 5.12 7.36 10.51 1.250 Univ 1.77 26 Yes Pla1c.0e6h3o0l-d1.e0r984 27-27.9 LD2700135N6R01 5.32 7.58 10.73 1.250 Univ 1.77 27 Yes 1.1024-1.1378 28-28.9 LD2800140N6R01 5.51 7.81 10.96 1.250 Univ 1.77 28 Yes 1.1417-1.1772 29-29.9 LD2900145N6R01 5.71 8.03 11.18 1.250 Univ 1.77 29 Yes 1.1811-1.2165 30-30.9 LD3000150N6R01 5.91 8.26 11.41 1.250 Univ 1.77 30 Yes 1.2205-1.2559 31-31.9 LD3100155N6R01 6.10 8.47 11.62 1.250 Univ 1.77 31 Yes 1.2598-1.2953 32-32.9 LD3200160N6R01 6.20 8.90 12.05 1.250 Univ 2.17 32 Yes 1.2992-1.3346 33-33.9 LD3300165N6R01 6.50 9.11 12.26 1.250 Univ 2.17 33 Yes 1.3386-1.3740 34-34.9 LD3400170N6R01 6.70 9.33 12.48 1.250 Univ 2.17 34 Yes 1.3780-1.4134 35-35.9 LD3500175N6R01 6.89 9.56 12.71 1.250 Univ 2.17 35 Yes 1.4173-1.4528 36-36.9 LD3600180N6R01 7.09 9.78 12.93 1.250 Univ 2.17 36 Yes 1.4567-1.4921 37-37.9 LD3700185N6R01 7.28 10.00 13.15 1.250 Univ 2.17 37 Yes 1.4961-1.5315 38-38.9 LD3800190N6R01 7.48 10.23 13.38 1.250 Univ 2.17 38 Yes 1.5354-1.5709 39-39.9 LD3900195N6R01 7.68 10.45 13.60 1.250 Univ 2.17 39 Yes 1.5748-1.6496 40-41.9 LD4000200N6R01 7.88 10.67 13.82 1.250 Univ 2.17 40-41 Yes *Do not mount a smaller drill point than the one listed with the tool. 148
