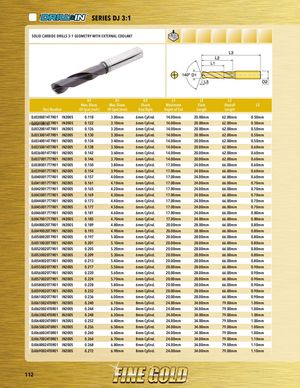

PART SERIES SERIES DJ 3:1 PSOARLITDSCERAIREBSIDE DRILLS 3:1 GEOMETRY WITH EXTERNAL COOLANT D1 D1 D2 L1 L2 L3 Max. Diam. Max. Diam. Shank Maximum Flute Overall L5 Part Number Of Spot (inch) Of Spot (mm) Size/Style Depth of Cut Length Length DJ0300014T7R01 IN2005 0.118 3.00mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm PDlaJc0e3h1o00ld1e4Tr7R01 IN2005 0.122 3.10mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm DJ0320014T7R01 IN2005 0.126 3.20mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm DJ0330014T7R01 IN2005 0.130 3.30mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm DJ0340014T7R01 IN2005 0.134 3.40mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm DJ0350014T7R01 IN2005 0.138 3.50mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm DJ0360014T7R01 IN2005 0.142 3.60mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm DJ0370017T7R01 IN2005 0.146 3.70mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm DJ0380017T7R01 IN2005 0.150 3.80mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm DJ0390017T7R01 IN2005 0.154 3.90mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm DJ0400017T7R01 IN2005 0.157 4.00mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm DJ0410017T7R01 IN2005 0.161 4.10mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DJ0420017T7R01 IN2005 0.165 4.20mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DJ0430017T7R01 IN2005 0.169 4.30mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DJ0440017T7R01 IN2005 0.173 4.40mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DJ0450017T7R01 IN2005 0.177 4.50mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DJ0460017T7R01 IN2005 0.181 4.60mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.80mm DJ0470017T7R01 IN2005 0.185 4.70mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.80mm DJ0480020T7R01 IN2005 0.189 4.80mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DJ0490020T7R01 IN2005 0.193 4.90mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DJ0500020T7R01 IN2005 0.197 5.00mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DJ0510020T7R01 IN2005 0.201 5.10mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DJ0520020T7R01 IN2005 0.205 5.20mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DJ0530020T7R01 IN2005 0.209 5.30mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DJ0540020T7R01 IN2005 0.213 5.40mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DJ0550020T7R01 IN2005 0.217 5.50mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DJ0560020T7R01 IN2005 0.220 5.60mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DJ0570020T7R01 IN2005 0.224 5.70mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DJ0580020T7R01 IN2005 0.228 5.80mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DJ0590020T7R01 IN2005 0.232 5.90mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DJ0610020T7R01 IN2005 0.236 6.00mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DJ0610024T0R01 IN2005 0.240 6.10mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DJ0620024T0R01 IN2005 0.244 6.20mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DJ0630024T0R01 IN2005 0.248 6.30mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DJ0640024T0R01 IN2005 0.252 6.40mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DJ0650024T0R01 IN2005 0.256 6.50mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DJ0660024T0R01 IN2005 0.260 6.60mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DJ0670024T0R01 IN2005 0.264 6.70mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm DJ0680024T0R01 IN2005 0.268 6.80mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm DJ0690024T0R01 IN2005 0.272 6.90mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm 112
