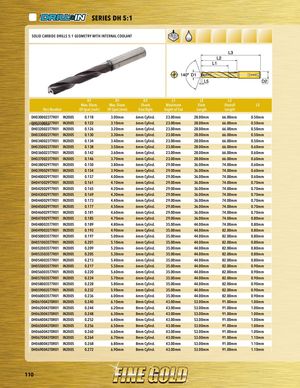

Общий каталог Ingersoll 2016 - 2017 - страница 112

PART SERIES SERIES DH 5:1 PSOARLITDSCERAIREBSIDE DRILLS 5:1 GEOMETRY WITH INTERNAL COOLANT D1 D1 D2 L1 L2 L3 Max. Diam. Max. Diam. Shank Maximum Flute Overall L5 Part Number Of Spot (inch) Of Spot (mm) Size/Style Depth of Cut Length Length DH0300023T7R01 IN2005 0.118 3.00mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm PDlaHc0e3h1o0l0d2e3rT7R01 IN2005 0.122 3.10mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm DH0320023T7R01 IN2005 0.126 3.20mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm DH0330023T7R01 IN2005 0.130 3.30mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm DH0340023T7R01 IN2005 0.134 3.40mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.50mm DH0350023T7R01 IN2005 0.138 3.50mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.60mm DH0360023T7R01 IN2005 0.142 3.60mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.60mm DH0370023T7R01 IN2005 0.146 3.70mm 6mm Cylind. 23.00mm 28.00mm 66.00mm 0.60mm DH0380029T7R01 IN2005 0.150 3.80mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.60mm DH0390029T7R01 IN2005 0.154 3.90mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.60mm DH0400029T7R01 IN2005 0.157 4.00mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.60mm DH0410029T7R01 IN2005 0.161 4.10mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm DH0420029T7R01 IN2005 0.165 4.20mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm DH0430029T7R01 IN2005 0.169 4.30mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm DH0440029T7R01 IN2005 0.173 4.40mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm DH0450029T7R01 IN2005 0.177 4.50mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm DH0460029T7R01 IN2005 0.181 4.60mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.70mm DH0470029T7R01 IN2005 0.185 4.70mm 6mm Cylind. 29.00mm 36.00mm 74.00mm 0.80mm DH0480035T7R01 IN2005 0.189 4.80mm 6mm Cylind. 35.00mm 44.00mm 74.00mm 0.80mm DH0490035T7R01 IN2005 0.193 4.90mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm DH0500035T7R01 IN2005 0.197 5.00mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm DH0510035T7R01 IN2005 0.201 5.10mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm DH0520035T7R01 IN2005 0.209 5.20mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm DH0535035T7R01 IN2005 0.205 5.30mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm DH0540035T7R01 IN2005 0.213 5.40mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.80mm DH0550035T7R01 IN2005 0.217 5.50mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm DH0560035T7R01 IN2005 0.220 5.60mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm DH0570035T7R01 IN2005 0.224 5.70mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm DH0580035T7R01 IN2005 0.228 5.80mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm DH0590035T7R01 IN2005 0.232 5.90mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm DH0600035T7R01 IN2005 0.236 6.00mm 6mm Cylind. 35.00mm 44.00mm 82.00mm 0.90mm DH0610043T0R01 IN2005 0.240 6.10mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm DH0620043T0R01 IN2005 0.244 6.20mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm DH0630043T0R01 IN2005 0.248 6.30mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm DH0640043T0R01 IN2005 0.252 6.40mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm DH0650043T0R01 IN2005 0.256 6.50mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm DH0660043T0R01 IN2005 0.260 6.60mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.00mm DH0670043T0R01 IN2005 0.264 6.70mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm DH0680043T0R01 IN2005 0.268 6.80mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm DH0690043T0R01 IN2005 0.272 6.90mm 8mm Cylind. 43.00mm 53.00mm 91.00mm 1.10mm 110
