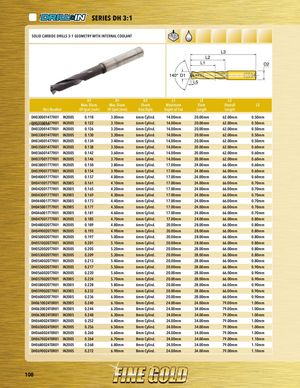

Общий каталог Ingersoll 2016 - 2017 - страница 110

PART SERIES SERIES DH 3:1 PSOARLITDSCERAIREBSIDE DRILLS 3:1 GEOMETRY WITH INTERNAL COOLANT D1 D1 D2 L1 L2 L3 Max. Diam. Max. Diam. Shank Maximum Flute Overall L5 Part Number Of Spot (inch) Of Spot (mm) Size/Style Depth of Cut Length Length DH0300014T7R01 IN2005 0.118 3.00mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm PDlaHc0e3h1o0l0d1e4rT7R01 IN2005 0.122 3.10mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm DH0320014T7R01 IN2005 0.126 3.20mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm DH0330014T7R01 IN2005 0.130 3.30mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm DH0340014T7R01 IN2005 0.134 3.40mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.50mm DH0350014T7R01 IN2005 0.138 3.50mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm DH0360014T7R01 IN2005 0.142 3.60mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm DH0370017T7R01 IN2005 0.146 3.70mm 6mm Cylind. 14.00mm 20.00mm 62.00mm 0.60mm DH0380017T7R01 IN2005 0.150 3.80mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm DH0390017T7R01 IN2005 0.154 3.90mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm DH0400017T7R01 IN2005 0.157 4.00mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.60mm DH0410017T7R01 IN2005 0.161 4.10mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DH0420017T7R01 IN2005 0.165 4.20mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DH0430017T7R01 IN2005 0.169 4.30mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DH0440017T7R01 IN2005 0.173 4.40mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DH0450017T7R01 IN2005 0.177 4.50mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DH0460017T7R01 IN2005 0.181 4.60mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.70mm DH0470017T7R01 IN2005 0.185 4.70mm 6mm Cylind. 17.00mm 24.00mm 66.00mm 0.80mm DH0480020T7R01 IN2005 0.189 4.80mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DH0490020T7R01 IN2005 0.193 4.90mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DH0500020T7R01 IN2005 0.197 5.00mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DH0510020T7R01 IN2005 0.201 5.10mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DH0520020T7R01 IN2005 0.205 5.20mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DH0530020T7R01 IN2005 0.209 5.30mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DH0540020T7R01 IN2005 0.213 5.40mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.80mm DH0550020T7R01 IN2005 0.217 5.50mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DH0560020T7R01 IN2005 0.220 5.60mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DH0570020T7R01 IN2005 0.224 5.70mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DH0580020T7R01 IN2005 0.228 5.80mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DH0590020T7R01 IN2005 0.232 5.90mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DH0600020T7R01 IN2005 0.236 6.00mm 6mm Cylind. 20.00mm 28.00mm 66.00mm 0.90mm DH0610024T0R01 IN2005 0.240 6.10mm 8mm Cylind. 24.00mm 24.00mm 79.00mm 1.00mm DH0620024T0R01 IN2005 0.244 6.20mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DH0630024T0R01 IN2005 0.248 6.30mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DH0640024T0R01 IN2005 0.252 6.40mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DH0650024T0R01 IN2005 0.256 6.50mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DH0660024T0R01 IN2005 0.260 6.60mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.00mm DH0670024T0R01 IN2005 0.264 6.70mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm DH0680024T0R01 IN2005 0.268 6.80mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm DH0690024T0R01 IN2005 0.272 6.90mm 8mm Cylind. 24.00mm 34.00mm 79.00mm 1.10mm 108
