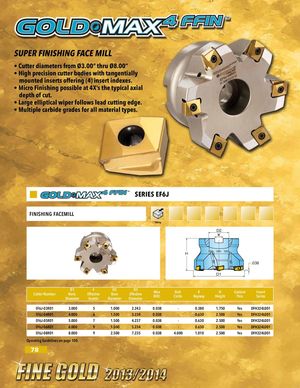

SERIES EF6J FINISHING FACEMILL Facing D2 K H .038 D1 D1 # D2 D3Cutter NumberNom.EffectiveBoreEffectiveDiameterInsertsDiameterDiameterMaxDOCBoltKH Coolant InsertCircleKeywayHeightThruSeries EF6J-03R01 3.000 5 1.000 2.243 0.038 - 0.380 1.750 Yes DFH324L001 EF6J-04R01 4.000 6 1.500 3.234 0.038 - 0.630 2.500 Yes DFH324L001 EF6J-05R01 5.000 7 1.500 4.237 0.038 - 0.630 2.500 Yes DFH324L001 EF6J-06R01 6.000 9 1.500 5.234 0.038 - 0.630 2.500 Yes DFH324L001 EF6J-08R01 8.000 9 2.500 7.235 0.038 4.000 1.010 2.500 Yes DFH324L001 Operating Guidelines on page 100. 78
