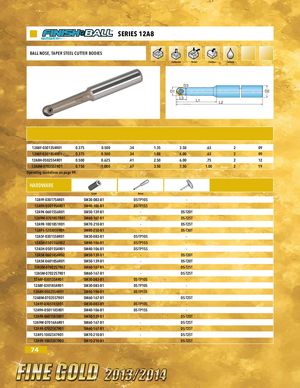

SERIES 12A8 BALL NOSE, TAPER STEEL CUTTER BODIES Corkscrew Pocket Contour Coolant D3 D1 D2 L3 L1 L2 12A8F-03013S4R01 0.375 0.500 .34 1.35 3.50 .63 2 09 12A8F-03018S4R01 0.375 0.500 .34 1.88 6.00 .63 2 09 12A8H-05025S4R01 0.500 0.625 .41 2.50 6.00 .75 2 12 12A8M-07035S7R01 0.750 1.000 .67 3.50 7.50 1.00 2 19 Operating Guidelines on page 99. HARDWARE Screw Driver 12A9F-03017S4R01 SM30-083-B1 DS-TP10S - 12A9H-05019S4R01 SM40-106-B1 DS-TP15S - 12A9K-06015S6R01 SM50-139-B1 - DS-T20T 12A9M-07018S7R01 SM60-167-B1 - DS-T25T 12A9R-10018S1R01 SM70-210-B1 - DS-T25T 12A9S-12030S9R01 SM80-250-B1 - DS-T30T 12A5F-03015S8R01 SM30-083-B1 DS-TP10S - 12A5H-05015S4R02 SM40-106-B1 DS-TP15S - 12A5H-05015S4R01 SM40-106-B1 DS-TP15S - 12A5K-06018S6R02 SM50-139-B1 - DS-T20T 12A5K-06018S6R01 SM50-139-B1 - DS-T20T 12A5M-07022S7R02 SM60-167-B1 - DS-T25T 12A5M-07022S7R01 SM60-167-B1 - DS-T25T 12A8F-03013S4R01 SM30-083-B1 DS-TP10S - 12A8F-03018S4R01 SM30-083-B1 DS-TP10S - 12A8H-05025S4R01 SM40-106-B1 DS-TP15S - 12A8M-07035S7R01 SM60-167-B1 - DS-T25T 12A9F-03011X5R01 SM30-083-B1 DS-TP10S - 12A9H-05011X5R01 SM40-106-B1 DS-TP15S - 12A9K-06015X5R01 SM50-139-B1 - DS-T20T 12A9M-07016X6R01 SM60-167-B1 - DS-T25T 12A9R-07021X7R01 SM60-167-B1 - DS-T25T 12A9S-10023X7R01 SM70-210-B1 - DS-T25T 12A9R-10023X7R02 SM70-210-B1 - DS-T25T 74
