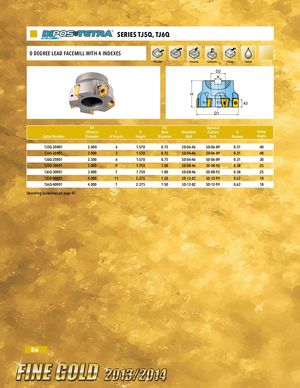

SERIES TJ5Q, TJ6Q 0 DEGREE LEAD FACEMILL WITH 4 INDEXES Shoulder Ramping Corkscrew Facing Coolant D2 K H .43 D1 D1 D2 Optional Effective # H Bore Retention Coolant K Ramp Cutter Number Diameter of Inserts Height Diameter Bolt Bolt Keyway Angle TJ5Q-20R01 2.000 6 1.570 0.75 SD-06-46 SD-06-89 0.31 .40 TJ6Q-20R01 2.000 3 1.570 0.75 SD-06-46 SD-06-89 0.31 .40 TJ6Q-25R01 2.500 6 1.570 0.75 SD-06-46 SD-06-89 0.31 .30 TJ5Q-30R01 3.000 9 1.750 1.00 SD-08-46 SD-08-92 0.38 .25 TJ6Q-30R01 3.000 7 1.750 1.00 SD-08-46 SD-08-92 0.38 .25 TJ5Q-40R01 4.000 11 2.375 1.50 SD-12-82 SD-12-99 0.62 .18 TJ6Q-40R01 4.000 7 2.375 1.50 SD-12-82 SD-12-99 0.62 .18 Operating Guidelines on page 97. 56
