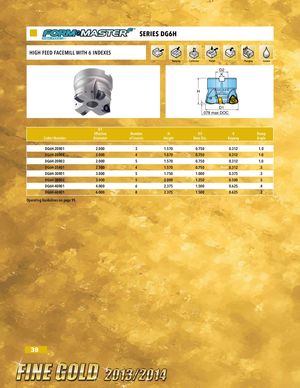

SERIES DG6H HIGH FEED FACEMILL WITH 6 INDEXES Ramping Corkscrew Pocket Plunging Coolant D2 K H D1 .078 max DOC D1 Effective Number H D2 K Ramp Cutter Number Diameter of Inserts Height Bore Dia. Keyway Angle DG6H-20R01 2.000 3 1.570 0.750 0.312 1.0 DG6H-20R02 2.000 4 1.570 0.750 0.312 1.0 DG6H-20R03 2.000 5 1.570 0.750 0.312 1.0 DG6H-25R01 2.500 4 1.570 0.750 0.312 .5 DG6H-30R01 3.000 5 1.750 1.000 0.375 .5 DG6H-30R02 3.000 5 2.000 1.250 0.500 .5 DG6H-40R01 4.000 6 2.375 1.500 0.625 .4 DG6H-60R01 6.000 8 2.375 1.500 0.625 .2 Operating Guidelines on page 95. 38
