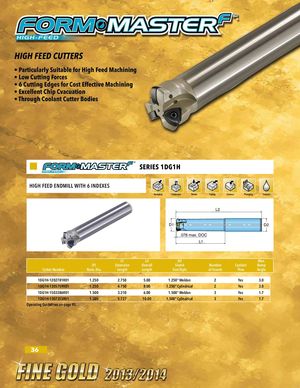

SERIES 1DG1H HIGH FEED ENDMILL WITH 6 INDEXES Ramping Corkscrew Pocket Facing Contour Plunging Coolant L2 D1 D2 .078 max. DOC L1 L1 L2 D2 Max. D1 Extension Overall Shank Number Coolant Ramp Cutter Number Nom. Dia. Length Length Size/Style of Inserts Thru Angle 1DG1H-1202781R01 1.250 2.750 5.00 1.250" Weldon 2 Yes 3.0 1DG1H-12057S9R01 1.250 4.750 8.00 1.250" Cylindrical 2 Yes 3.0 1DG1H-1503386R01 1.500 3.310 6.00 1.500" Weldon 3 Yes 1.7 1DG1H-15073S5R01 1.500 5.727 10.00 1.500" Cylindrical 3 Yes 1.7 Operating Guidelines on page 95. 36
