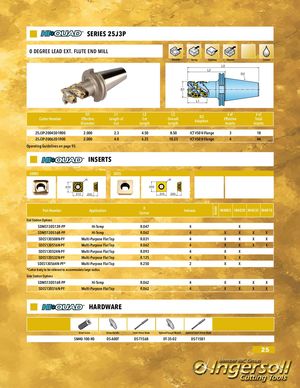

SERIES 25J3P 0 DEGREE LEAD EXT. FLUTE END MILL Shoulder Facing Slabbing Channel Coolant L3 L2 D2 D1 L1 Cutter Number D1 L1 L2EffectiveLength ofExtDiameterCutLengthL3OverallLength D2Adaption # ofEffectiveInserts # ofTotalInserts 25J3P-20045D1R00 2.000 2.3 4.50 8.50 ICT #50 V-Flange 3 18 25J3P-20062D1R00 2.000 4.0 6.25 10.25 ICT #50 V-Flange 4 44 Operating Guidelines on page 93. INSERTS SDMS SDES R R .512 .510 .512 .200 .510 .200 Part Numbe r Application RCorner Indexes IN4005 IN4030 IN4035 IN4015 End Station Options SDMS130512R-PP Hi-Temp R.047 4 X SDMS130516R-PP Hi-Temp R.062 4 X X X X SDES130508N-PF Multi-Purpose Flat Top R.031 4 X X X X SDES130516N-PF Multi-Purpose Flat Top R.062 4 X X X X SDES130524N-PF Multi-Purpose Flat Top R.093 4 X X SDES130532N-PF Multi-Purpose Flat Top R.125 4 X X SDES130564N-PF* Multi-Purpose Flat Top R.250 2 X X *Cutter body to be relieved to accommodate large radius. Side Station Options SDMS130516R-PP Hi-Temp R.062 4 X X X X SDES130516N-PF Multi-Purpose Flat Top R.062 4 X X X X HARDWARE Insert Screw Driver Handle Insert Driver Blade Optional Torque Wrench Optional Insert Driver Blade SM40-100-R0 DS-A00T DS-T156B DT-35-02 DS-T15B1 25 Grade
