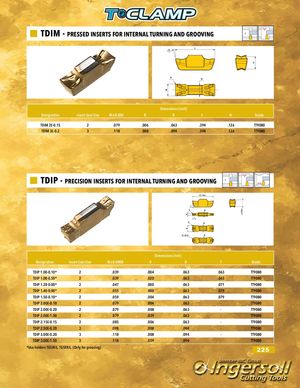

TDIM - PRESSED INSERTS FOR INTERNAL TURNING AND GROOVING Dimensions (inch) Designation Insert Seat Size W±0.002 R B L H Grade TDIM 2E-0.15 2 .079 .006 .063 .394 .126 TT9080 TDIM 3E-0.2 3 .118 .008 .094 .394 .126 TT9080 TDIP - PRECISION INSERTS FOR INTERNAL TURNING AND GROOVING .394 Dimensions (inch) Designation Insert Seat Size W±0.0008 R B T Grade TDIP 1.00-0.10* 2 .039 .004 .063 .063 TT9080 TDIP 1.00-0.50* 2 .039 .020 .063 .063 TT9080 TDIP 1.20-0.00* 2 .047 .000 .063 .071 TT9080 TDIP 1.40-0.00* 2 .055 .000 .063 .079 TT9080 TDIP 1.50-0.10* 2 .059 .004 .063 .079 TT9080 TDIP 2.00E-0.10 2 .079 .004 .063 - TT9080 TDIP 2.00E-0.20 2 .079 .008 .063 - TT9080 TDIP 2.00E-1.00 2 .079 .039 .063 - TT9080 TDIP 2.15E-0.15 2 .085 .006 .063 - TT9080 TDIP 2.50E-0.20 3 .098 .008 .094 - TT9080 TDIP 3.00E-0.20 3 .118 .008 .094 - TT9080 TDIP 3.00E-1.50 3 .118 .059 .094 - TT9080 *Use holders TGSIR/L, TGSFR/L. (Only for grooving) 225 .126
