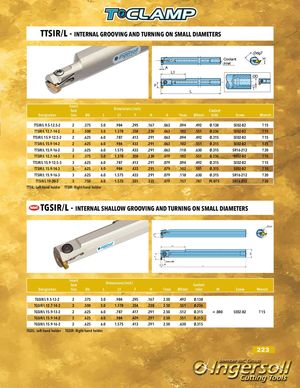

TTSIR/L - INTERNAL GROOVING AND TURNING ON SMALL DIAMETERS Ødg7 Coolant H Inlet A L1 ØD F L T InsertSeat Dimensions (inch) Coolant Designation Size Ød L L1 F H A Tmax ØDmin Inlet Screw Wrench TTSIR/L 9.5-12.5-2 2 .375 5.0 .984 .295 .167 .063 .094 .492 Ø.138 SE02-82 T 15 TTSIR/L 12.7-14-2 2 .500 5.0 1.378 .358 .230 .063 .102 .551 Ø.236 SE02-82 T 15 TTSIR/L 15.9-12.5-2 2 .625 6.0 .787 .413 .291 .063 .094 .492 Ø.315 SE02-82 T 15 TTSIR/L 15.9-14-2 2 .625 6.0 .984 .433 .291 .063 .102 .551 Ø.315 SE02-82 T 15 TTSIR/L 15.9-16-2 2 .625 6.0 1.575 .433 .291 .063 .118 .630 Ø.315 SR16-212 T 20 TTSIR/L 12.7-14-3 3 .375 5.0 1.378 .358 .230 .079 .102 .551 Ø.236 SE02-82 T 15 TTSIR/L 15.9-12.5-3 3 .625 6.0 .787 .413 .291 .079 .094 .492 Ø.315 SE02-82 T 15 TTSIR/L 15.9-14-3 3 .625 6.0 .984 .433 .291 .079 .102 .551 Ø.315 SE02-82 T 15 TTSIR/L 15.9-16-3 3 .625 6.0 1.575 .433 .291 .079 .118 .630 Ø.315 SR16-212 T 20 TTSIR/L 19-20-3 3 .750 6.0 1.575 .551 .335 .079 .157 .787 PL 075 SR16-212 T 20 TTSIL: Left-hand holder TTSIR: Right-hand holder TGSIR/L - INTERNAL SHALLOW GROOVING AND TURNING ON SMALL DIAMETERS InsertSeat Dimensions (inch) Coolant Designation Size Ød L L1 F H Tmax ØDmin Inlet W Screw Wrench TGSIR/L 9.5-13-2 2 .375 5.0 .984 .295 .167 2.50 .492 Ø.138 TGSIR/L 12.7-14-2 2 .500 5.0 1.378 .354 .230 2.50 .551 Ø.236 TGSIR/L 15.9-13-2 2 .625 6.0 .787 .417 .291 2.50 .512 Ø.315 < .080 SE02-82 T 15 TGSIR/L 15.9-14-2 2 .625 6.0 .984 .429 .291 2.50 .551 Ø.315 TGSIR/L 15.9-16-2 2 .625 6.0 1.575 .413 .291 2.50 .630 Ø.315 TGSIL: Left-hand holder TGSIR: Right-hand holder 223
