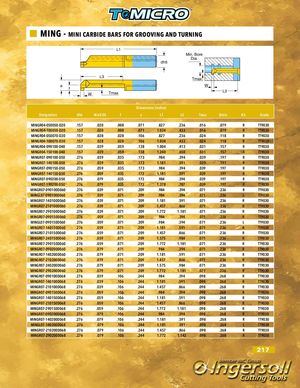

MING - MINI CARBIDE BARS FOR GROOVING AND TURNING L1 Min. Bore Dia. dh6 L3 Tmax a f W Tmax W L3 Dimensions (inches) Designation dh6 W±0.05 f a L1 L3 Tmax Dmin R/L Grade MINGR04-050050-D20 .157 .020 .008 .071 .827 .236 .016 .079 R TT9030 MINGR04-100050-D20 .157 .020 .008 .071 1.024 .433 .016 .079 R TT9030 MINGR04-050070-D30 .157 .028 .028 .106 .827 .236 .024 .118 R TT9030 MINGR04-100070-D30 .157 .028 .028 .106 1.024 .433 .024 .118 R TT9030 MINGR04-090100-D40 .157 .039 .059 .138 1.004 .413 .031 .157 R TT9030 MINGR04-150100-D40 .157 .039 .059 .138 1.240 .650 .031 .157 R TT9030 MINGR07-090100-D50 .276 .039 .035 .173 .984 .394 .039 .197 R TT9030 MINGR07-140100-D50 .276 .039 .035 .173 1.181 .591 .039 .197 R TT9030 MINGR07-090150-D50 .276 .059 .035 .173 .984 .394 .039 .197 R TT9030 MINGR07-140150-D50 .276 .059 .035 .173 1.181 .591 .039 .197 R TT9030 MINGR07-090200-D50 .276 .079 .035 .173 .984 .394 .039 .197 R TT9030 MINGR07-190200-D50 .276 .079 .035 .173 1.378 .787 .039 .197 R TT9030 MINGR07-090100D060 .276 .039 .071 .209 .984 .394 .071 .236 R TT9030 MINGL07-090100D060 .276 .039 .071 .209 .984 .394 .071 .236 L TT9030 MINGR07-140100D060 .276 .039 .071 .209 1.181 .591 .071 .236 R TT9030 MINGR07-210100D060 .276 .039 .071 .209 1.457 .866 .071 .236 R TT9030 MINGR07-290100D060 .276 .039 .071 .209 1.772 1.181 .071 .236 R TT9030 MINGR07-090150D060 .276 .059 .071 .209 .984 .394 .071 .236 R TT9030 MINGL07-090150D060 .276 .059 .071 .209 .984 .394 .071 .236 L TT9030 MINGR07-140150D060 .276 .059 .071 .209 1.181 .591 .071 .236 R TT9030 MINGR07-210150D060 .276 .059 .071 .209 1.457 .866 .071 .236 R TT9030 MINGR07-240150D060 .276 .059 .071 .209 1.575 .984 .071 .236 R TT9030 MINGR07-290150D060 .276 .059 .071 .209 1.772 1.181 .071 .236 R TT9030 MINGR07-090200D060 .276 .079 .071 .209 .984 .394 .071 .236 R TT9030 MINGR07-140200D060 .276 .079 .071 .209 1.181 .591 .071 .236 R TT9030 MINGR07-210200D060 .276 .079 .071 .209 1.457 .866 .071 .236 R TT9030 MINGR07-240200D060 .276 .079 .071 .209 1.575 .984 .071 .236 R TT9030 MINGR07-290200D060 .276 .079 .071 .209 1.772 1.181 .071 .236 R TT9030 MINGR07-090100D068 .276 .039 .106 .244 .984 .394 .098 .268 R TT9030 MINGR07-140100D068 .276 .039 .106 .244 1.181 .591 .098 .268 R TT9030 MINGR07-210100D068 .276 .039 .106 .244 1.457 .866 .098 .268 R TT9030 MINGR07-090150D068 .276 .059 .106 .244 .984 .394 .098 .268 R TT9030 MINGR07-140150D068 .276 .059 .106 .244 1.181 .591 .098 .268 R TT9030 MINGR07-210150D068 .276 .059 .106 .244 1.457 .866 .098 .268 R TT9030 MINGR07-290150D068 .276 .059 .106 .244 1.772 1.181 .098 .268 R TT9030 MINGR07-090200D068 .276 .079 .106 .244 .984 .394 .098 .268 R TT9030 MINGR07-140200D068 .276 .079 .106 .244 1.181 .591 .098 .268 R TT9030 MINGL07-140200D068 .276 .079 .106 .244 1.181 .591 .098 .268 L TT9030 MINGR07-210200D068 .276 .079 .106 .244 1.457 .866 .098 .268 R TT9030 MINGR07-290200D068 .276 .079 .106 .244 1.772 1.142 .098 .268 R TT9030 217
