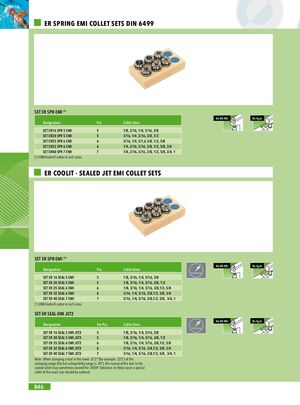

ER SPRING EMI COLLET SETS DIN 6499 SET ER SPR-EMI (1) 46-48 HRc Ra 4µin Designation Pcs. Collet Sizes SET ER16 SPR 5 EMI 5 1/8, 3/16, 1/4, 5/16, 3/8 SET ER20 SPR 5 EMI 5 3/16, 1/4 ,5/16, 3/8 ,1/2 SET ER25 SPR 6 EMI 6 3/16, 1/4, 5/1,6 3/8, 1/2, 5/8 SET ER32 SPR 6 EMI 6 1/4, 3/16, 5/16, 3/8, 1/2, 5/8, 3/4 SET ER40 SPR 7 EMI 7 1/4, 3/16, 5/16, 3/8, 1/2, 5/8, 3/4, 1 (1) EMI-Endmill cutter in inch sizes. ER COOLIT - SEALED JET EMI COLLET SETS SET ER SPR-EMI (1) 46-48 HRc Ra 4µin Designation Pcs. Collet Sizes 1450 psi SET ER 16 SEAL 5 EMI 5 1/8, 3/16, 1/4, 5/16, 3/8 SET ER 20 SEAL 5 EMI 5 1/8, 3/16, 1/4, 5/16, 3/8, 1/2 SET ER 25 SEAL 6 EMI 6 1/8, 3/16, 1/4, 5/16, 3/8,1/2, 5/8 SET ER 32 SEAL 6 EMI 6 3/16, 1/4, 5/16, 3/8,1/2, 5/8, 3/4 SET ER 40 SEAL 7 EMI 7 3/16, 1/4, 5/16, 3/8,1/2, 5/8, 3/4, 1 (1) EMI-Endmill cutter in inch sizes. SET-ER SEAL-EMI JET2 46-48 HRc Ra 4µin Designation Set Pcs. Collet Sizes 1450 psi SET ER 16 SEAL 5 EMI JET2 5 1/8, 3/16, 1/4, 5/16, 3/8 SET ER 20 SEAL 5 EMI JET2 5 1/8, 3/16, 1/4, 5/16, 3/8, 1/2 SET ER 25 SEAL 6 EMI JET2 6 1/8, 3/16, 1/4, 5/16, 3/8,1/2, 5/8 SET ER 32 SEAL 6 EMI JET2 6 3/16, 1/4, 5/16, 3/8,1/2, 5/8, 3/4 SET ER 40 SEAL 7 EMI JET2 7 3/16, 1/4, 5/16, 3/8,1/2, 5/8, 3/4, 1 Note: When clamping a tool in the lower .012” (for example .323”) of the clamping range (the full collapsibility range is. 40”), the runout of the tool in the sealed collet may sometimes exceed the .0004” tolerance. In these cases a special collet of the exact size should be ordered. 846
