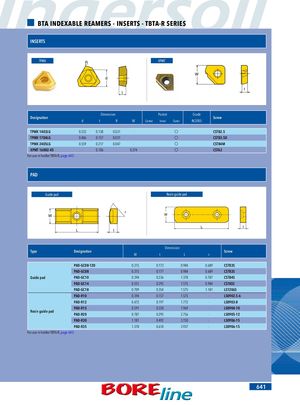

BTA INDEXABLE REAMERS - INSERTS - TBTA-R SERIES INSERTS TPMX R XPMT W d t t Dimension Pocket Grade Designation Screw d t R W Center Inner Outer IN2005 TPMX 1403LG 0.333 0.138 0.031 - CSTB2.5 TPMX 1704LG 0.406 0.157 0.031 - CSTB3.5D TPMX 2405LG 0.559 0.217 0.047 - CSTB4M XPMT 16002-45 - 0.106 - 0.374 CSTA3 For use in holder TBTA-R, page 643. PAD Guide pad Resin guide pad r W W L t L t Dimension Type Designation Screw W t L r PAD-GC08-120 0.315 0.173 0.984 0.689 CSTB3S PAD-GC08 0.315 0.177 0.984 0.689 CSTB3S Guide pad PAD-GC10 0.394 0.236 1.378 0.787 CSTB4S PAD-GC14 0.551 0.295 1.575 0.984 CSTA5S PAD-GC18 0.709 0.354 1.575 1.181 LS1206S PAD-R10 0.394 0.157 1.575 - LS0902.5-6 PAD-R12 0.472 0.197 1.772 - LS0903-8 PAD-R15 0.591 0.228 1.969 - LS0904-10 Resin guide pad PAD-R20 0.787 0.295 2.756 - LS0905-12 PAD-R30 1.181 0.492 3.150 - LS0906-15 PAD-R35 1.378 0.610 3.937 - LS0906-15 For use in holder TBTA-R, page 643. 641
