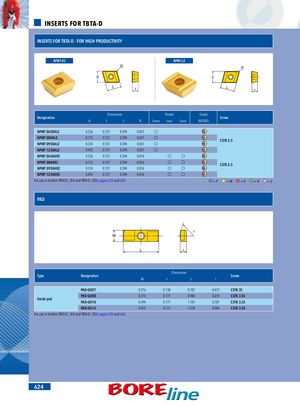

INSERTS FOR TBTA-D INSERTS FOR TBTA-D - FOR HIGH PRODUCTIVITY NPMT-R2 NPMT-L2 R R d d L t L t Dimension Pocket Grade Designation Screw d t L R Center Inner Outer IN2005 NPMT 06504L2 0.256 0.157 0.394 0.031 NPMT 0804L2 0.315 0.157 0.394 0.031 CSTB 2.5 NPMT 09504L2 0.374 0.157 0.394 0.031 NPMT 12504L2 0.492 0.157 0.394 0.031 NPMT 06504R2 0.256 0.157 0.394 0.016 NPMT 0804R2 0.315 0.157 0.394 0.016 CSTB 2.5 NPMT 09504R2 0.374 0.157 0.394 0.016 NPMT 12504R2 0.492 0.157 0.394 0.016 For use in holders TBTA-D_SE4 and TBTA-D_DE4, pages 625 and 626. =P =M =K =N =S PAD r W L t Dimension Type Designation Screw W t L r PAD-GO07 0.276 0.138 0.787 0.472 CSTB 3S PAD-GO08 0.315 0.177 0.984 0.610 CSTB 3.5S Guide pad PAD-GO10 0.394 0.177 1.181 0.787 CSTB 3.5S PAD-GO12 0.472 0.217 1.378 0.984 CSTB 3.5S For use in holders TBTA-D_SE4 and TBTA-D_DE4, pages 625 and 626. 624
