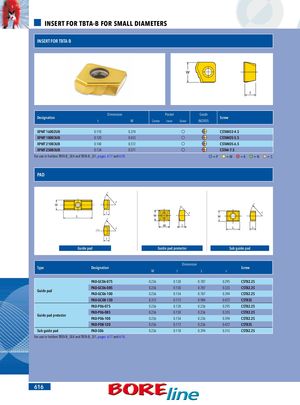

INSERT FOR TBTA-B FOR SMALL DIAMETERS INSERT FOR TBTA-B W t Dimension Pocket Grade Designation Screw t W Center Inner Outer IN2005 XPMT 16002UB 0.110 0.374 CSTANO3-4.5 XPMT 18003UB 0.120 0.433 CSTANO5-5.5 XPMT 21003UB 0.140 0.512 CSTANO5-6.5 XPMT 25003UB 0.134 0.571 CSTA4-7.5 For use in holders TBTA-B_SE4 and TBTA-B_SI1, pages 617 and 618. =P =M =K =N =S PAD r W t r r L W W W t r L t (1) t Guide pad Guide pad protector Sub guide pad Dimension Type Designation Screw W t L r PAD-GC06-075 0.236 0.128 0.787 0.295 CSTB2.2S PAD-GC06-085 0.236 0.150 0.787 0.335 CSTB2.2S Guide pad PAD-GC06-100 0.236 0.154 0.787 0.394 CSTB2.2S PAD-GC08-120 0.315 0.173 0.984 0.472 CSTB3S PAD-P06-075 0.236 0.128 0.236 0.295 CSTB2.2S PAD-P06-085 0.236 0.150 0.236 0.335 CSTB2.2S Guide pad protector PAD-P06-100 0.236 0.154 0.236 0.394 CSTB2.2S PAD-P08-120 0.236 0.173 0.236 0.472 CSTB3S Sub guide pad PAD-S06 0.236 0.118 0.394 0.315 CSTB2.2S For use in holders TBTA-B_SE4 and TBTA-B_SI1, pages 617 and 618. 616
