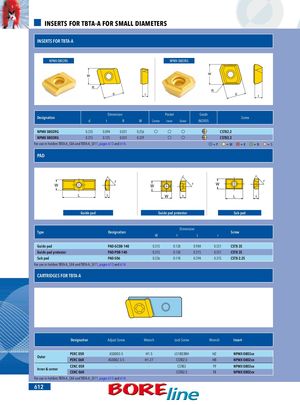

INSERTS FOR TBTA-A FOR SMALL DIAMETERS INSERTS FOR TBTA-A NPMX 0802RG NPMX 0803RG W W R R d t d t Dimension Pocket Grade Designation Screw d t R W Center Inner Outer IN2005 NPMX 0802RG 0.335 0.094 0.031 0.256 CSTB2.2 NPMX 0803RG 0.315 0.125 0.031 0.329 CSTB2.2 For use in holders TBTA-A_SE4 and TBTA-A_SI11, pages 613 and 614. =P =M =K =N =S PAD W r W r W r L t W t L t Guide pad Guide pad protector Sub pad Dimension Type Designation Screw W t L r Guide pad PAD-GC08-140 0.315 0.138 0.984 0.551 CSTB 3S Guide pad protector PAD-P08-140 0.315 0.138 0.315 0.551 CSTB 3S Sub pad PAD-S06 0.236 0.118 0.394 0.315 CSTB 2.2S For use in holders TBTA-A_SE4 and TBTA-A_SI11, pages 613 and 614. CARTRIDGES FOR TBTA-A Designation Adjust Screw Wrench Lock Screw Wrench Insert PERC 05R AS0003-5 H1.5 LS1803RH H2 NPMX 0803xx Outer PERC 06R AS0002.5-5 H1.27 CSTB2.5 H8 NPMX 0802xx CENC 05R - - CSTB3 T9 NPMX 0803xx Inner & center CENC 06R - - CSTB2.5 T8 NPMX 0802xx For use in holders TBTA-A_SE4 and TBTA-A_SI11, pages 613 and 614. 612
