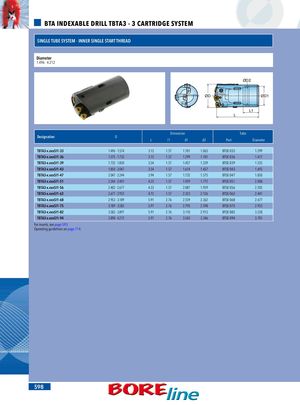

BTA INDEXABLE DRILL TBTA3 - 3 CARTRIDGE SYSTEM SINGLE TUBE SYSTEM - INNER SINGLE START THREAD Diameter 1.496 - 4.212 ØD2 ØD ØD1 L1 L Dimension Tube Designation D L l1 d1 d2 Part Diameter TBTA3-x.xxxSI1-33 1.496 - 1.574 3.15 1.57 1.181 1.063 BTSE 033 1.299 TBTA3-x.xxxSI1-36 1.575 - 1.732 3.15 1.57 1.299 1.181 BTSE 036 1.417 TBTA3-x.xxxSI1-39 1.732 - 1.850 3.54 1.57 1.457 1.339 BTSE 039 1.535 TBTA3-x.xxxSI1-43 1.850 - 2.047 3.54 1.57 1.614 1.457 BTSE 043 1.693 TBTA3-x.xxxSI1-47 2.047 - 2.244 3.94 1.57 1.732 1.575 BTSE 047 1.850 TBTA3-x.xxxSI1-51 2.244 - 2.401 4.33 1.57 1.929 1.772 BTSE 051 2.008 TBTA3-x.xxxSI1-56 2.402 - 2.677 4.33 1.57 2.087 1.929 BTSE 056 2.205 TBTA3-x.xxxSI1-62 2.677 - 2.952 4.72 1.57 2.323 2.126 BTSE 062 2.441 TBTA3-x.xxxSI1-68 2.953 - 3.189 5.91 2.76 2.559 2.362 BTSE 068 2.677 TBTA3-x.xxxSI1-75 3.189 - 3.582 5.91 2.76 2.795 2.598 BTSE 075 2.953 TBTA3-x.xxxSI1-82 3.583 - 3.897 5.91 2.76 3.110 2.913 BTSE 082 3.228 TBTA3-x.xxxSI1-94 3.898 - 4.212 5.91 2.76 3.543 3.346 BTSE 094 3.701 For inserts, see page 593. Operating guidelines on page 714. 598
