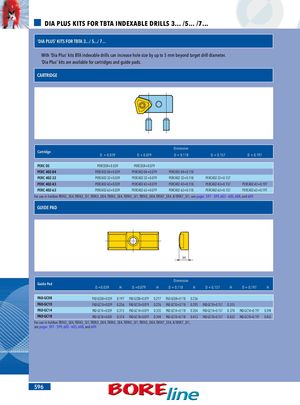

DIA PLUS KITS FOR TBTA INDEXABLE DRILLS 3... /5... /7... 'DIA PLUS' KITS FOR TBTA 3.../ 5.../ 7... With 'Dia Plus' kits BTA indexable drills can increase hole size by up to 5 mm beyond target drill diameter. 'Dia Plus' kits are available for cartridges and guide pads. CARTRIDGE Dimension Cartridge D + 0.039 D + 0.079 D + 0.118 D + 0.157 D + 0.197 PERC 05 PERC05R+0.039 PERC05R+0.079 PERC 402-04 PERC402-04+0.039 PERC402-04+0.079 PERC402-04+0.118 PERC 402-32 PERC402-32+0.039 PERC402-32+0.079 PERC402-32+0.118 PERC402-32+0.157 PERC 402-43 PERC402-43+0.039 PERC402-43+0.079 PERC402-43+0.118 PERC402-43+0.157 PERC402-43+0.197 PERC 402-63 PERC402-63+0.039 PERC402-63+0.079 PERC402-63+0.118 PERC402-63+0.157 PERC402-63+0.197 For use in holders TBTA3_SE4, TBTA3_SI1, TBTA3_DE4, TBTA5_SE4, TBTA5_SI1, TBTA5_DE4, TBTA7_SE4, & TBTA7_SI1, see pages 597 - 599, 603 - 605, 608, and 609. GUIDE PAD H Dimension Guide Pad D +0.039 H D +0.079 H D + 0.118 H D + 0.157 H D + 0.197 H PAD-GC08 PAD-GC08+0.039 0.197 PAD-GC08+0.079 0.217 PAD-GC08+0.118 0.236 PAD-GC10 PAD-GC10+0.039 0.256 PAD-GC10+0.079 0.276 PAD-GC10+0.118 0.295 PAD-GC10+0.157 0.315 PAD-GC14 PAD-GC14+0.039 0.315 PAD-GC14+0.079 0.335 PAD-GC14+0.118 0.354 PAD-GC14+0.157 0.374 PAD-GC14+0.197 0.394 PAD-GC18 PAD-GC18+0.039 0.374 PAD-GC18+0.079 0.394 PAD-GC18+0.118 0.413 PAD-GC18+0.157 0.433 PAD-GC18+0.197 0.453 For use in holders TBTA3_SE4, TBTA3_SI1, TBTA3_DE4, TBTA5_SE4, TBTA5_SI1, TBTA5_DE4, TBTA7_SE4, & TBTA7_SI1, see pages 597 - 599, 603 - 605, 608, and 609. 596
