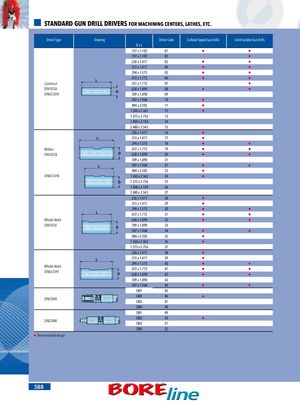

STANDARD GUN DRILL DRIVERS FOR MACHINING CENTERS, LATHES, ETC. Driver Type Drawing Driver Code Carbide Tipped Gun Drills Solid Carbide Gun Drills DxL .157 x 1.102 01 • • .197 x 1.102 02 • .236 x 1.417 03 • • .315 x 1.417 04 • • .394 x 1.575 05 • • L .472 x 1.772 06 • • Cylindrical .551 x 1.772 07 • DIN1835A .630 x 1.890 08D • • DIN6535HA .709 x 1.890 09 .787 x 1.968 10 • .984 x 2.205 11 • 1.260 x 2.362 12 • 1.575 x 2.756 13 1.969 x 3.150 14 2.480 x 3.543 15 .236 x 1.417 16 • L .315 x 1.417 17 • .394 x 1.575 18 • • Weldon .472 x 1.772 19 • • DIN1835B D .630 x 1.890 20 • • .709 x 1.890 21 L .787 x 1.968 22 • • .984 x 2.205 23 • DIN6535HB 1.260 x 2.362 24 • D 1.575 x 2.756 25 1.968 x 3.150 26 2.480 x 3.543 27 .236 x 1.417 28 • .315 x 1.417 29 • .394 x 1.575 30 • • L .472 x 1.772 31 • • Whistle Notch .630 x 1.890 32 • • DIN1835E D .709 x 1.890 33 .787 x 1.968 34 • • .984 x 2.205 35 • 1.260 x 2.362 36 • 1.575 x 2.756 37 .236 x 1.417 38 • L .315 x 1.417 39 • Whistle NotchDIN6535HE .394 x 1.575 40 • •.472 x 1.77241••D.630 x 1.89042•• .709 x 1.890 43 .787 x 1.968 44 • • CM1 45 DIN228AK CM2 46 • CM3 47 CM4 48 CM1 49 DIN228BK CM2 50 • CM3 51 CM4 52 • Recommended design 588
