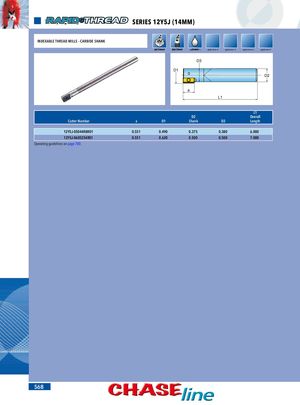

PART SERIES SERIES 12Y5J (14MM) PINADRETXSAEBRLIESTHREAD MILLS - CARBIDE SHANK aIpnpt.liTcahtrieoand1 aEpxptl.icTahtrioenad2 apCploicoaltaionnt 3 application 4 application 5 application 6 application 7 D3 D1 D2 a L1 L1 D2 Overall Cutter Number a D1 Shank D3 Length 12Y5J-05044R8R01 0.551 0.490 0.375 0.380 6.000 12Y5J-06052S4R01 0.551 0.620 0.500 0.500 7.000 Operating guidelines on page 700. 568
