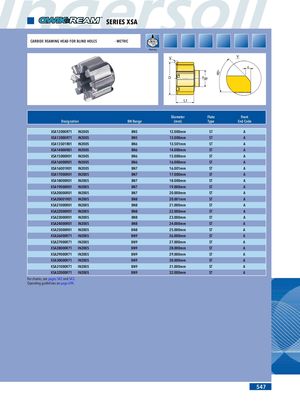

45° SERIES XSA CARBIDE REAMING HEAD FOR BLIND HOLES - METRIC Reaming V V c D Typ L1 Diameter Flute Front Designation BN Range (mm) Type End Code XSA12000R71 IN2005 BN5 12.000mm ST A XSA13000R71 IN2005 BN5 13.000mm ST A XSA13501R01 IN2005 BN6 13.501mm ST A XSA14000R01 IN2005 BN6 14.000mm ST A XSA15000R01 IN2005 BN6 15.000mm ST A XSA16000R01 IN2005 BN6 16.000mm ST A XSA16001R01 IN2005 BN7 16.001mm ST A XSA17000R01 IN2005 BN7 17.000mm ST A XSA18000R01 IN2005 BN7 18.000mm ST A XSA19000R01 IN2005 BN7 19.000mm ST A XSA20000R01 IN2005 BN7 20.000mm ST A XSA20001R01 IN2005 BN8 20.001mm ST A XSA21000R01 IN2005 BN8 21.000mm ST A XSA22000R01 IN2005 BN8 22.000mm ST A XSA23000R01 IN2005 BN8 23.000mm ST A XSA24000R01 IN2005 BN8 24.000mm ST A XSA25000R01 IN2005 BN8 25.000mm ST A XSA26000R71 IN2005 BN9 26.000mm ST A XSA27000R71 IN2005 BN9 27.000mm ST A XSA28000R71 IN2005 BN9 28.000mm ST A XSA29000R71 IN2005 BN9 29.000mm ST A XSA30000R71 IN2005 BN9 30.000mm ST A XSA31000R71 IN2005 BN9 31.000mm ST A XSA32000R71 IN2005 BN9 32.000mm ST A For shanks, see pages 542 and 543. Operating guidelines on page 694. 547
