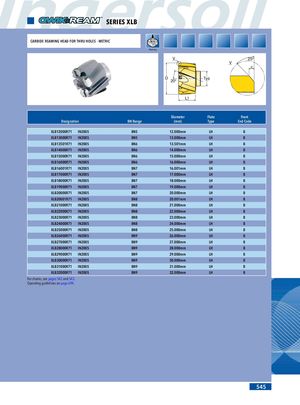

SERIES XLB CARBIDE REAMING HEAD FOR THRU HOLES - METRIC Reaming V 25° V c D Typ 20° L1 Diameter Flute Front Designation BN Range (mm) Type End Code XLB12000R71 IN2005 BN5 12.000mm LH B XLB13000R71 IN2005 BN5 13.000mm LH B XLB13501R71 IN2005 BN6 13.501mm LH B XLB14000R71 IN2005 BN6 14.000mm LH B XLB15000R71 IN2005 BN6 15.000mm LH B XLB16000R71 IN2005 BN6 16.000mm LH B XLB16001R71 IN2005 BN7 16.001mm LH B XLB17000R71 IN2005 BN7 17.000mm LH B XLB18000R71 IN2005 BN7 18.000mm LH B XLB19000R71 IN2005 BN7 19.000mm LH B XLB20000R71 IN2005 BN7 20.000mm LH B XLB20001R71 IN2005 BN8 20.001mm LH B XLB21000R71 IN2005 BN8 21.000mm LH B XLB22000R71 IN2005 BN8 22.000mm LH B XLB23000R71 IN2005 BN8 23.000mm LH B XLB24000R71 IN2005 BN8 24.000mm LH B XLB25000R71 IN2005 BN8 25.000mm LH B XLB26000R71 IN2005 BN9 26.000mm LH B XLB27000R71 IN2005 BN9 27.000mm LH B XLB28000R71 IN2005 BN9 28.000mm LH B XLB29000R71 IN2005 BN9 29.000mm LH B XLB30000R71 IN2005 BN9 30.000mm LH B XLB31000R71 IN2005 BN9 31.000mm LH B XLB32000R71 IN2005 BN9 32.000mm LH B For shanks, see pages 542 and 543. Operating guidelines on page 694. 545
