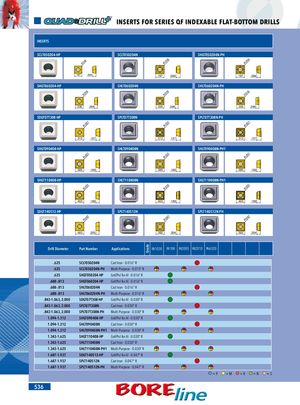

INSERTS FOR SERIES QF INDEXABLE FLAT-BOTTOM DRILLS INSERTS SCLT050204-HP SCLT050204N SHGT050204N-PH R.016 R.016 R.016 .197 .094 .197 .094 .197 .094 SHGT060204-HP SHLT060204N SHLT060204N-PH R.016 R.016 R.016 .236 .094 .236 .094 .236 .094 SDGT07T308-HP SPLT07T308N SPLT07T308N-PH R.031 R.031 R.031 .312 .157 .312 .157 .312 .157 SHGT090408-HP SHLT090408N SHLT090408N-PH1 R.031 R.031 R.031 .385 .169 .385 .169 .385 .169 SHGT110408-HP SHLT110408N SHLT110408N-PH1 R.031 R.031 R.031 .453 .189 .453 .189 .453 .189 SDGT140512-HP SPLT140512N SPLT140512N-PH R.047 R.047 R.047 .563 .205 .562 .204 .562 .204 Drill Diameter Part Number Applications IN1030 IN10K IN2005 IN2010 IN6520 .625 SCLT050204N Cast Iron - 0.016" R .625 SCLT050204N-PH Multi-Purpose - 0.015" R .625 SHGT050204-HP Grd/Pol for Al - 0.016" R .688-.813 SHGT060204-HP Grd/Pol for Al - 0.016" R .688-.813 SHLT060204N Cast Iron - 0.016" R .688-.813 SHLT060204N-PH Multi-Purpose - 0.016" R .843-1.063, 2.000 SDGT07T308-HP Grd/Pol for Al - 0.030" R .843-1.063, 2.000 SPLT07T308N Cast Iron - 0.030" R .843-1.063, 2.000 SPLT07T308N-PH Multi-Purpose - 0.030" R 1.094-1.312 SHGT090408-HP Grd/Pol for Al - 0.030" R 1.094-1.312 SHLT090408N Cast Iron - 0.030" R 1.094-1.312 SHLT090408N-PH1 Multi-Purpose - 0.030" R 1.343-1.625 SHGT110408-HP Grd/Pol for Al - 0.030" R 1.343-1.625 SHLT110408N Cast Iron - 0.030" R 1.343-1.625 SHLT110408N-PH1 Multi-Purpose - 0.030" R 1.687-1.937 SDGT140512-HP Grd/Pol for Al - 0.047" R 1.687-1.937 SPLT140512N Cast Iron - 0.047" R 1.687-1.937 SPLT140512N-PH Multi-Purpose - 0.047" R =P =M =K =N =S 536 Grade
