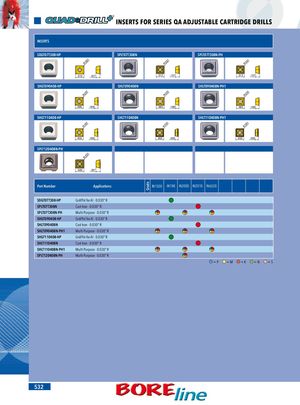

Grade INSERTS FOR SERIES QA ADJUSTABLE CARTRIDGE DRILLS INSERTS SDGT07T308-HP SPLT07T308N SPLT07T308N-PH R.031 R.031 R.031 .312 .157 .312 .157 .312 .157 SHGT090408-HP SHLT090408N SHLT090408N-PH1 R.031 R.031 R.031 .385 .169 .385 .169 .385 .169 SHGT110408-HP SHLT110408N SHLT110408N-PH1 R.031 R.031 R.031 .453 .189 .453 .189 .453 .189 SPLT120408N-PH R.031 .500 .187 Part Number Applications IN1030 IN10K IN2005 IN2010 IN6520 SDGT07T308-HP Grd/Pol for Al - 0.030" R SPLT07T308N Cast Iron - 0.030" R SPLT07T308N-PH Multi-Purpose - 0.030" R SHGT090408-HP Grd/Pol for Al - 0.030" R SHLT090408N Cast Iron - 0.030" R SHLT090408N-PH1 Multi-Purpose - 0.030" R SHGT110408-HP Grd/Pol for Al - 0.030" R SHLT110408N Cast Iron - 0.030" R SHLT110408N-PH1 Multi-Purpose - 0.030" R SPLT120408N-PH Multi-Purpose - 0.030" R =P =M =K =N =S 532
