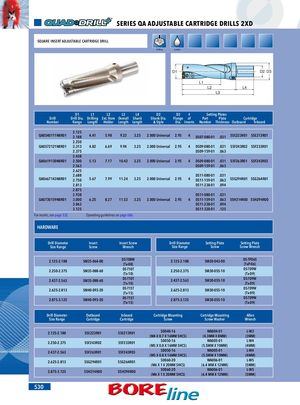

SERIES QA ADJUSTABLE CARTRIDGE DRILLS 2XD SQUARE INSERT ADJUSTABLE CARTRIDGE DRILL Drilling Coolant D1 D2 D3 L1 4 L2 L4 L3 D1 L1 L2 L3 L4 D2 D3 # Setting Plates Drill Drill Dia. Drilling Ext. from Overall Shank Shank Dia. Flange of Part Plate Cartridge Number Range Length Holder Length Length­ & Style Dia. Inserts Number Thickness Outboard Inboard 2.125 - - QA0 540111N8R01 2.188 4.41 5.9 8 9. 23 3 .25 2. 000 Univ ersal 2 .95 4 DS07-080-01 .031 55E223R01 55E213R01 2.250 - - QA0572121N8R01 2.313 4.82 6.69 9.94 3.25 2.000 Universal 2.95 4 DS09-080-01 .031 55F243R02 55F233R01 2.375 DS09-159-01 .063 2.438 - - QA0619130N8R01 2.500 5.13 7.17 10.42 3.25 2.000 Universal 2.95 4 DS09-080-01 .031 55F263R01 55F243R03 2.563 DS09-159-01 .063 2.625 - - 2.688 DS11-080-01 .031 QA0 667143N8R01 2.750 5.67 7.99 11.24 3.25 2.000 Universal 2.95 4 DS11-159-01 .063 55G294R01 55G264R01 2.813 DS11-238-01 .094 2.875 - - 2.938 DS11-080-01 .031 QA0730159N8R01 3.000 6.25 8.27 11.52 3.25 2.000 Universal 2.95 4 DS11-159-01 .063 55H314R00 55H294R00 3.063 DS11-238-01 .094 3.125 DS11-320-01 .125 For inserts, see page 532. Operating guidelines on page 686. HARDWARE Drill Diameter Insert Insert Screw Drill Diameter Setting Plate Setting Plate Size Range Screw Wrench Size Range Screw Screw Wrench 2.125-2.188 SM25-064-00 DS-T08W 2.125-2.188 SM20-043-00 DS-TP06S (Tx-08) (TxP-06) 2.250-2.375 SM35-088-60 DS-T10T 2.250-2.375 SM30-055-10 DS-T09W (Tx-10) (Tx-09) 2.437-2.563 SM35-088-60 DS-T10T 2.437-2.563 SM30-055-10 DS-T09W (Tx-10) (Tx-09) 2.625-2.813 SM40-093-20 DS-T15T 2.625-2.813 SM30-055-10 DS-T09W (Tx-15) (Tx-09) 2.875-3.125 SM40-093-20 DS-T15T 2.875-3.125 SM30-055-10 DS-T09W (Tx-15) (Tx-09) Drill Diameter Outboard Inboard Cartridge Mounting Cartridge Mounting Allen Size Range Cartridge Cartridge Screw Screw Washer Wrench 2.125-2.188 55E223R01 55E213R01 SD040-16 WA004-01 L-W3 (M4 X 0.7 X 16MM SHCS) (4.3MM X 8MM) (3MM) 2.250-2.375 55F243R02 55F233R01 SD050-16 WA005-01 L-W4 (M5 X 0.8 X 16MM SHCS) (5.5MM X 10MM) (4MM) 2.437-2.563 55F263R01 55F243R03 SD050-16 WA005-01 L-W4 (M5 X 0.8 X 16MM SHCS) (5.5MM X 10MM) (4MM) 2.625-2.813 55G294R01 55G264R01 SD060-20 WA006-01 L-W5 (M6 X 1 X 20MM SHCS) (6.4 MM X 12MM) (5MM) 2.875-3.125 55H314R00 55H294R00 SD060-20 WA006-01 L-W5 (M6 X 1 X 20MM SHCS) (6.4 MM X 12MM) (5MM) 530
