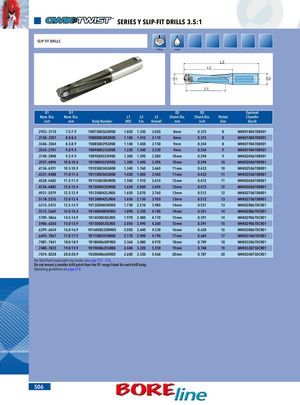

SERIES Y SLIP-FIT DRILLS 3.5:1 SLIP FIT DRILLS Drilling Coolant L3 L2 D1 D2 L1 D1 D1 D2 D2 Optional Nom. Dia. Nom. Dia. L1 L2 L3 Shank Dia. Shank Dia. Pocket Chamfer inch mm Body Number DOC Ext. Overall mm inch Size Shank .2953-.3110 7.5-7.9 YD0750026SDR00 1.020 1.330 3.020 8mm 0.315 8 MHK018047DBR01 .3150-.3307 8.0-8.4 YD0800028SDR00 1.100 1.410 3.110 8mm 0.315 8 MHK018047DBR01 .3346-.3504 8.5-8.9 YD0850029SER00 1.140 1.450 3.150 9mm 0.354 8 MHK019047DBR01 .3543-.3701 9.0-9.4 YD0900031SER00 1.220 1.540 3.230 9mm 0.354 9 MHK019047DBR01 .3740-.3898 9.5-9.9 YD0950033SFR00 1.300 1.590 3.280 10mm 0.394 9 MHK024067DBR01 .3937-.4094 10.0-10.4 YD1000033SFR00 1.300 1.690 3.390 10mm 0.394 10 MHK024067DBR01 .4134-.4291 10.5-10.9 YD1050034SGR00 1.340 1.760 3.460 11mm 0.433 10 MHK025067DBR01 .4331-.4488 11.0-11.4 YD1100036SGR00 1.420 1.850 3.540 11mm 0.433 11 MHK025067DBR01 .4528-.4685 11.5-11.9 YD1150038SHR00 1.500 1.910 3.610 12mm 0.472 11 MHK026067DBR01 .4724-.4882 12.0-12.4 YD1200042SHR00 1.650 2.000 3.690 12mm 0.472 12 MHK026067DBR01 .4921-.5079 12.5-12.9 YD1250042SJR00 1.650 2.070 3.760 13mm 0.512 12 MHK027067DBR01 .5118-.5276 13.0-13.4 YD1300042SJR00 1.650 2.150 3.920 13mm 0.512 13 MHK027067DBR01 .5315-.5472 13.5-13.9 YD1350044SKR00 1.730 2.210 3.980 14mm 0.551 13 MHK028067DCR01 .5512-.5669 14.0-14.4 YD1400048SKR00 1.890 2.330 4.100 14mm 0.551 14 MHK028067DCR01 .5709-.5866 14.5-14.9 YD1450050SLR00 1.970 2.400 4.170 15mm 0.591 14 MHK029067DCR01 .5906-.6260 15.0-15.9 YD1500052SLR00 2.050 2.490 4.260 15mm 0.591 15 MHK029067DCR01 .6299-.6654 16.0-16.9 YD1600052SMR00 2.050 2.640 4.530 16mm 0.630 16 MHK030067DCR01 .6693-.7047 17.0-17.9 YD1700055SNR00 2.170 2.900 4.790 17mm 0.669 17 MHK031067DCR01 .7087-.7441 18.0-18.9 YD1800060SPR00 2.360 3.080 4.970 18mm 0.709 18 MHK032067DCR01 .7480-.7835 19.0-19.9 YD1900062SQR00 2.440 3.220 5.350 19mm 0.748 19 MHK033075DCR01 .7874-.8228 20.0-20.9 YD2000066SRR00 2.600 3.330 5.460 20mm 0.787 20 MHK034075DCR01 For Qwik-Twist replaceable tip inserts, see page 512 - 516. Do not mount a smaller drill point than the D1 range listed for each drill body. Operating guidelines on page 674. 506
