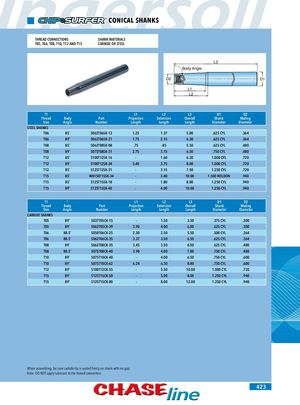

CONICAL SHANKS THREAD CONNECTIONS SHANK MATERIALS T05, T06, T08, T10, T12 AND T15 CARBIDE OR STEEL L3 Body Angle D2 D1 L1 L2 T1 º L1 L2 L3 D1 D2 Thread Body Part Projection Extension Overall Shank Mating Size Angle Number Length Length Length Diameter Diameter STEEL SHANKS T06 85˚ S062T06SK-13 1.25 1.37 5.00 .625 CYL .364 T06 89˚ S062T06SK-21 1.75 2.15 6.30 .625 CYL .364 T08 85˚ S062T08SK-08 .75 .85 5.50 .625 CYL .480 T08 89˚ S075T08SK-31 2.75 3.15 6.50 .750 CYL .480 T12 85˚ S100T12SK-16 - 1.60 6.30 1.000 CYL .720 T12 89˚ S100T12SK-34 3.40 3.75 8.00 1.000 CYL .720 T12 85˚ S125T12SK-31 - 3.15 7.50 1.250 CYL .720 T15 85˚ WB150T15SK-34 - 3.40 10.00 1.500 WELDON .940 T15 85˚ S125T15SK-18 - 1.80 8.00 1.250 CYL .940 T15 89˚ S125T15SK-40 - 4.00 10.00 1.250 CYL .940 T1 º L1 L2 L3 D1 D2 Thread Body Part Projection Extension Overall Shank Mating Size Angle Number Length Length Length Diameter Diameter CARBIDE SHANKS T05 89˚ S037T05CK-15 - 1.50 3.50 .375 CYL .300 T05 89˚ S062T05CK-39 3.90 4.00 6.00 .625 CYL .300 T06 88.5˚ S050T06CK-25 2.50 2.50 5.50 .500 CYL .364 T06 88.5˚ S062T06CK-35 3.37 3.50 6.50 .625 CYL .364 T08 89˚ S062T08CK-35 3.45 3.50 6.50 .625 CYL .480 T08 88.5˚ S075T08CK-40 3.90 4.00 7.00 .750 CYL .480 T10 89˚ S075T10CK-40 - 4.00 6.50 .750 CYL .600 T10 89˚ S075T10CK-62 6.24 6.30 8.80 .750 CYL .600 T12 89˚ S100T12CK-55 - 5.50 10.00 1.000 CYL .720 T15 89˚ S125T15CK-50 - 5.00 8.00 1.250 CYL .940 T15 89˚ S125T15CK-80 - 8.00 12.00 1.250 CYL .940 When assembling, be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. 423
