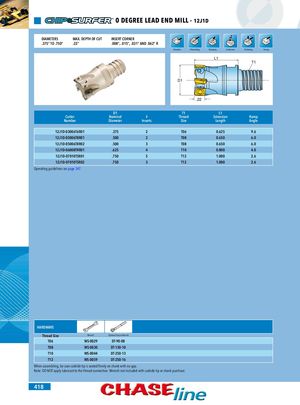

0 DEGREE LEAD END MILL - 12J1D DIAMETERS MAX. DEPTH OF CUT INSERT CORNER .375” TO .750” .22” .008”, .015”, .031” AND .062” R Shoulder Channeling Ramping Corkscrew Pocketing Facing L1 T1 D1 .22 ­ D1 T1 L1 Cutter Nominal # Thread Extension Ramp Number Diameter Inserts Size Length Angle 12J1D-03006T6R01 .375 2 T06 0.625 9.6 12J1D-05006T8R01 .500 2 T08 0.650 6.0 12J1D-05006T8R02 .500 3 T08 0.650 6.0 12J1D-06008TRR01 .625 4 T10 0.800 4.0 12J1D-07010TSR01 .750 5 T12 1.000 2.6 12J1D-07010TSR02 .750 3 T12 1.000 2.6 Operating guidelines on page 347. HARDWARE Thread Size Wrench Optional Torque Wrench T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 When assembling, be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. 418
