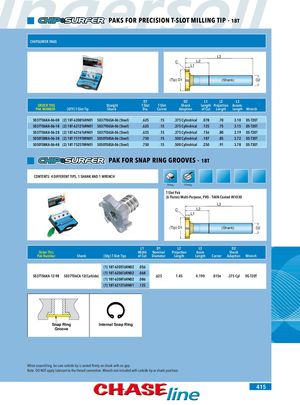

PAKS FOR PRECISION T-SLOT MILLING TIP - 18T CHIPSURFER PAKS L3 C L2 L1 (Tip) D1 (Shank) D2 D1 D2 L1 L2 L3 ORDER THIS Straight T-Slot T-Slot Shank Length Projection Assem. PAK NUMBER (QTY) T-Slot Tip Shank Dia. Corner Adaption of Cut Length Length Wrench S037T06KA-06-08 (2) 18T-6208T6RN01 S037T06SA-06 (Steel) .625 .15 .375 Cylindrical .078 .70 3.10 DS-T20T S037T06KA-06-18 (2) 18T-6212T6RN01 S037T06SA-06 (Steel) .625 .15 .375 Cylindrical .125 .75 3.15 DS-T20T S037T06KA-06-28 (2) 18T-6216T6RN01 S037T06SA-06 (Steel) .625 .15 .375 Cylindrical .156 .80 3.19 DS-T20T S050T08KA-06-38 (2) 18T-7519T8RN01 S050T08SA-06 (Steel) .750 .15 .500 Cylindrical .187 .85 3.72 DS-T30T S050T08KA-06-48 (2) 18T-7525T8RN01 S050T08SA-06 (Steel) .750 .15 .500 Cylindrical .250 .91 3.78 DS-T30T PAK FOR SNAP RING GROOVES - 18T CONTENTS: 4 DIFFERENT TIPS, 1 SHANK AND 1 WRENCH Slotting T-Slotting T-Slot Pak (6 Flutes) Multi-Purpose, PVD - TiAIN-Coated IN1030 L3 C L2 L1 (Tip) D1 (Shank) D2 L1 D1 L2 L3 D2 Order This Width Nominal Projection Assm Shank Pak Number Shank (Qty) T-Slot Tips of Cut Diameter Length Length Corner Adaption Wrench (1) 18T-6205T6RN02 .056 (1) 18T-6206T6RN02 .068 S037T06KA-12-98 S037T06CA-12(Carbide) .625 1.45 4.190 .015r .375 Cyl DS-T20T (1) 18T-6208T6RN02 .086 (1) ­18T-6212T6RN01 .125 Snap Ring Internal Snap Ring Groove When assembling, be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. 415
