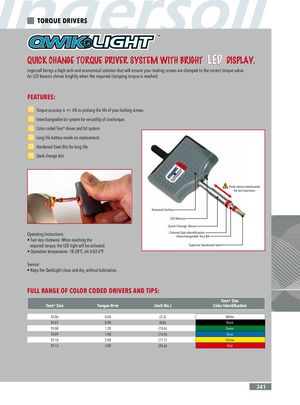

TORQUE DRIVERS QUICK CHANGE TORQUE DRIVER SYSTEM WITH BRIGHT LED DISPLAY. Ingersoll brings a high tech and economical solution that will ensure your tooling screws are clamped to the correct torque value. An LED beacon shines brightly when the required clamping torque is reached. FEATURES: Torque accuracy is +/- 6% to prolong the life of your locking screws. Interchangeable bit system for versatility of size/torque. Color coded Torx® driver and bit system. Long life battery needs no replacement. Hardened Steel Bits for long life. Qwik change bits. ! Push sleeve backwards for bit insertion. Textured Surface LED Beacon Quick Change Sleeve Operating Instructions: Colored Size IdentificationInterchangeable Torx Bit • Turn key clockwise. When reaching the required torque, the LED light will be activated. Superior Hardened Steel • Operation temperature: 18-28ºC, 64.4-82.4ºF Service: • Keep the QwikLight clean and dry, without lubrication. FULL RANGE OF COLOR CODED DRIVERS AND TIPS: Torx® Size Torx® Size Torque N•m (Inch lbs.) Color Identification TX-06 0.60 (5.3) White TX-07 0.90 (8.0) Black TX-08 1.20 (10.6) Green TX-09 1.40 (12.4) Blue TX-10 2.00 (17.7) Yellow TX-15 3.00 (26.6) Red 341
