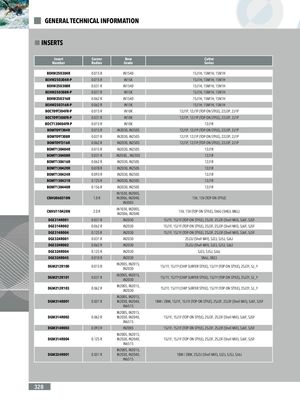

GENERAL TECHNICAL INFORMATION n INSERTS Insert Corner New Cutter Number Radius Grade Series BEHW250304R 0.015 R IN1540 15J1H, 15M1H, 15N1H BEHW250304R-P 0.015 R IN15K 15J1H, 15M1H, 15N1H BEHW250308R 0.031 R IN1540 15J1H, 15M1H, 15N1H BEHW250308R-P 0.031 R IN15K 15J1H, 15M1H, 15N1H BEHW250316R 0.062 R IN1540 15J1H, 15M1H, 15N1H BEHW250316R-P 0.062 R IN15K 15J1H, 15M1H, 15N1H BOCT09T304FR-P 0.015 R IN10K 12J1P, 12J1P (TOP-ON STYLE), 22J3P, 2J1P BOCT09T308FR-P 0.031 R IN10K 12J1P, 12J1P (TOP-ON STYLE), 22J3P, 2J1P BOCT130404FR-P 0.015 R IN10K 12J1R BOMT09T304R 0.015 R IN2030, IN2505 12J1P, 12J1P (TOP-ON STYLE), 22J3P, 2J1P BOMT09T308R 0.031 R IN2030, IN2505 12J1P, 12J1P (TOP-ON STYLE), 22J3P, 2J1P BOMT09T316R 0.062 R IN2030, IN2505 12J1P, 12J1P (TOP-ON STYLE), 22J3P, 2J1P BOMT130404R 0.015 R IN2030, IN2505 12J1R BOMT130408R 0.031 R IN2030, , IN2505 12J1R BOMT130416R 0.062 R IN2030, IN2505 12J1R BOMT130420R 0.078 R IN2030, IN2505 12J1R BOMT130424R 0.093 R IN2030, IN2505 12J1R BOMT130431R 0.125 R IN2030, IN2505 12J1R BOMT130440R 0.156 R IN2030, IN2505 12J1R IN1030, IN2005, CNHU060310N 1.0 R IN2006, IN2040, 15V, 15V (TOP-ON STYLE) IN3005 CNHU110420N 2.0 R IN1030, IN2005,IN2006, IN2040 15V, 15V (TOP-ON STYLE), 5V6G (SHELL MILL) DGE314R001 0.031 R IN2030 1SJ1F, 1SJ1F (TOP-ON STYLE), 2SJ3F, 2SJ3F (Shell Mill), SJ6F, SJ5F DGE314R002 0.062 R IN2030 1SJ1F, 1SJ1F (TOP-ON STYLE), 2SJ3F, 2SJ3F (Shell Mill), SJ6F, SJ5F DGE314R004 0.125 R IN2030 1SJ1F, 1SJ1F (TOP-ON STYLE), 2SJ3F, 2SJ3F (Shell Mill), SJ6F, SJ5F DGE324R001 0.031 R IN2030 2SJ3J (Shell Mill), SJ2J, SJ5J, SJ6J DGE324R002 0.062 R IN2030 2SJ3J (Shell Mill), SJ2J, SJ5J, SJ6J DGE324R004 0.125 R IN2030 SJ2J, SJ5J, SJ6J DGE324R045 0.010 R IN2030 SN6J, SN2J DGM212R100 0.015 R IN2005, IN2015,IN2030 1SJ1Y, 1SJ1Y (CHIP SURFER STYLE), 1SJ1Y (TOP-ON STYLE), 2SJ3Y, SJ_Y DGM212R101 0.031 R IN2005, IN2015,IN2030 1SJ1Y, 1SJ1Y (CHIP SURFER STYLE), 1SJ1Y (TOP-ON STYLE), 2SJ3Y, SJ_Y DGM212R103 0.062 R IN2005, IN2015,IN2030 1SJ1Y, 1SJ1Y (CHIP SURFER STYLE), 1SJ1Y (TOP-ON STYLE), 2SJ3Y, SJ_Y IN2005, IN2015, DGM314R001 0.031 R IN2030, IN2040, 1BW / 2BW, 1SJ1F, 1SJ1F (TOP-ON STYLE), 2SJ3F, 2SJ3F (Shell Mill), SJ6F, SJ5F IN6515 IN2005, IN2015, DGM314R002 0.062 R IN2030, IN2040, 1SJ1F, 1SJ1F (TOP-ON STYLE), 2SJ3F, 2SJ3F (Shell Mill), SJ6F, SJ5F IN6515 DGM314R003 0.093 R IN2005 1SJ1F, 1SJ1F (TOP-ON STYLE), 2SJ3F, 2SJ3F (Shell Mill), SJ6F, SJ5F IN2005, IN2015, DGM314R004 0.125 R IN2030, IN2040, 1SJ1F, 1SJ1F (TOP-ON STYLE), 2SJ3F, 2SJ3F (Shell Mill), SJ6F, SJ5F IN6515 IN2005, IN2015, DGM324R001 0.031 R IN2030, IN2040, 1BW / 2BW, 2SJ3J (Shell Mill), SJ2J, SJ5J, SJ6J IN6515 328
