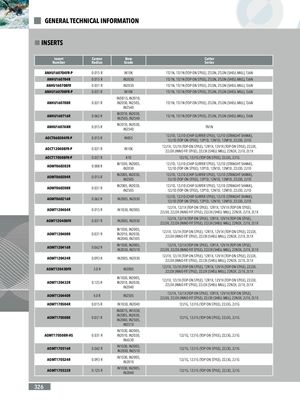

GENERAL TECHNICAL INFORMATION n INSERTS Insert Corner New Cutter Number Radius Grade Series ANHU160704FR-P 0.015 R IN10K 1TJ1N, 1TJ1N (TOP-ON STYLE), 2TJ3N, 2TJ3N (SHELL MILL), TJ6N ANHU160704R 0.015 R IN2030 1TJ1N, 1TJ1N (TOP-ON STYLE), 2TJ3N, 2TJ3N (SHELL MILL), TJ6N ANHU160708FR 0.031 R IN2030 1TJ1N, 1TJ1N (TOP-ON STYLE), 2TJ3N, 2TJ3N (SHELL MILL), TJ6N ANHU160708FR-P 0.031 R IN10K 1TJ1N, 1TJ1N (TOP-ON STYLE), 2TJ3N, 2TJ3N (SHELL MILL), TJ6N INDD15, IN2010, ANHU160708R 0.031 R IN2030, IN2505, 1TJ1N, 1TJ1N (TOP-ON STYLE), 2TJ3N, 2TJ3N (SHELL MILL), TJ6N IN2540 ANHU160716R 0.062 R IN2010, IN2030,IN2505, IN25401TJ1N, 1TJ1N (TOP-ON STYLE), 2TJ3N, 2TJ3N (SHELL MILL), TJ6N ANHU1607ANR 0.015 R IN2010, IN2030,IN2540 TN1N AOCT060204FR-P 0.015 R IN05S 12J1D, 12J1D (CHIP-SURFER STYLE), 12J1D (STRAIGHT SHANK),12J1D (TOP-ON STYLE), 12P1D, 12N1D, 12M1D, 22J3D, 2J1D AOCT120408FR-P 0.031 R IN10K 12J1X, 12J1X (TOP-ON STYLE), 12R1X, 12V1X (TOP-ON STYLE), 22J3X,22J3X (INNO-FIT STYLE), 22J3X (SHELL MILL), 22N3X, 2J1X, 2L1X AOCT170508FR-P 0.031 R K10 12J1G, 12J1G (TOP-ON STYLE), 22J3G, 2J1G AOMT060202R 0.008 R IN1030, IN2005,IN2030 12J1D, 12J1D (CHIP-SURFER STYLE), 12J1D (STRAIGHT SHANK),12J1D (TOP-ON STYLE), 12P1D, 12N1D, 12M1D, 22J3D, 2J1D AOMT060204R 0.015 R IN2005, IN2030,IN2505 12J1D, 12J1D (CHIP-SURFER STYLE), 12J1D (STRAIGHT SHANK),12J1D (TOP-ON STYLE), 12P1D, 12N1D, 12M1D, 22J3D, 2J1D AOMT060208R 0.031 R IN2005, IN2030,IN2505 12J1D, 12J1D (CHIP-SURFER STYLE), 12J1D (STRAIGHT SHANK),12J1D (TOP-ON STYLE), 12P1D, 12N1D, 12M1D, 22J3D, 2J1D AOMT060216R 0.062 R IN2005, IN2030 12J1D, 12J1D (CHIP-SURFER STYLE), 12J1D (STRAIGHT SHANK),12J1D (TOP-ON STYLE), 12P1D, 12N1D, 12M1D, 22J3D, 2J1D AOMT120404R 0.015 R IN1030, IN2005 12J1X, 12J1X (TOP-ON STYLE), 12R1X, 12V1X (TOP-ON STYLE),22J3X, 22J3X (INNO-FIT STYLE), 22J3X (SHELL MILL), 22N3X, 2J1X, 2L1X AOMT120408FR 0.031 R IN2005, IN2030 12J1X, 12J1X (TOP-ON STYLE), 12R1X, 12V1X (TOP-ON STYLE),22J3X, 22J3X (INNO-FIT STYLE), 22J3X (SHELL MILL), 22N3X, 2J1X, 2L1X IN1030, IN2005,AOMT120408R0.031 RIN2010, IN2030,IN2040, IN250512J1X, 12J1X (TOP-ON STYLE), 12R1X, 12V1X (TOP-ON STYLE), 22J3X,22J3X (INNO-FIT STYLE), 22J3X (SHELL MILL), 22N3X, 2J1X, 2L1X AOMT120416R 0.062 R IN1030, IN2005,IN2030, IN251012J1X, 12J1X (TOP-ON STYLE), 12R1X, 12V1X (TOP-ON STYLE),22J3X, 22J3X (INNO-FIT STYLE), 22J3X (SHELL MILL), 22N3X, 2J1X, 2L1X AOMT120424R 0.093 R IN2005, IN2030 12J1X, 12J1X (TOP-ON STYLE), 12R1X, 12V1X (TOP-ON STYLE), 22J3X,22J3X (INNO-FIT STYLE), 22J3X (SHELL MILL), 22N3X, 2J1X, 2L1X AOMT120430FR 3.0 R IN2005 12J1X, 12J1X (TOP-ON STYLE), 12R1X, 12V1X (TOP-ON STYLE), 22J3X,22J3X (INNO-FIT STYLE), 22J3X (SHELL MILL), 22N3X, 2J1X, 2L1X IN1030, IN2005,AOMT120432R0.125 RIN2010, IN2030,IN204012J1X, 12J1X (TOP-ON STYLE), 12R1X, 12V1X (TOP-ON STYLE), 22J3X,22J3X (INNO-FIT STYLE), 22J3X (SHELL MILL), 22N3X, 2J1X, 2L1X AOMT120440R 4.0 R IN2505 12J1X, 12J1X (TOP-ON STYLE), 12R1X, 12V1X (TOP-ON STYLE),22J3X, 22J3X (INNO-FIT STYLE), 22J3X (SHELL MILL), 22N3X, 2J1X, 2L1X AOMT170504R 0.015 R IN1030, IN2040 12J1G, 12J1G (TOP-ON STYLE), 22J3G, 2J1G INDD15, IN1030, AOMT170508R 0.031 R IN2005, IN2030,IN2040, IN2505, 12J1G, 12J1G (TOP-ON STYLE), 22J3G, 2J1G IN2510 IN1030, IN2005, AOMT170508R-HS 0.031 R IN2010, IN2030, 12J1G, 12J1G (TOP-ON STYLE), 22J3G, 2J1G IN6530 AOMT170516R 0.062 R IN1030, IN2005,IN2030, IN2510 12J1G, 12J1G (TOP-ON STYLE), 22J3G, 2J1G AOMT170524R 0.093 R IN1030, IN2005,IN2010 12J1G, 12J1G (TOP-ON STYLE), 22J3G, 2J1G AOMT170532R 0.125 R IN1030, IN2005,IN2040 12J1G, 12J1G (TOP-ON STYLE), 22J3G, 2J1G 326
