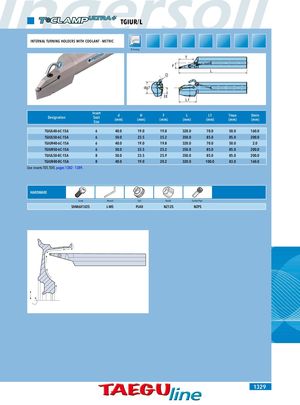

TGIUR/L INTERNAL TURNING HOLDERS WITH COOLANT - METRIC ID Turning T F L D dg7 H L1 Designation InsertSeatSize d(mm) H(mm) F(mm) L(mm) L1 Tmax(mm)(mm)Dmin(mm) TGIUL40-6C-15A 6 40.0 19.0 19.8 320.0 70.0 50.0 160.0 TGIUL50-6C-15A 6 50.0 23.5 25.2 350.0 85.0 85.0 200.0 TGIUR40-6C-15A 6 40.0 19.0 19.8 320.0 70.0 50.0 2.0 TGIUR50-6C-15A 6 50.0 23.5 25.2 350.0 85.0 85.0 200.0 TGIUL50-8C-15A 8 50.0 23.5 25.9 350.0 85.0 85.0 200.0 TGIUR40-8C-15A 8 40.0 19.0 20.2 320.0 100.0 83.0 160.0 Use inserts TDT, TDIT, pages 1282 - 1289. HARDWARE Screw Wrench Seal Nozzle Coolant Pipe SHM6X1X25 L-W5 PL40 NZ125 NZP5 1329
