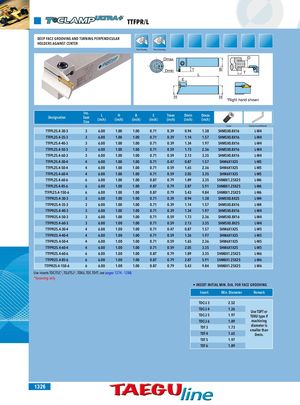

TTFPR/L DEEP FACE GROOVING AND TURNING PERPENDICULAR HOLDERS AGAINST CENTER Face Turning Face Grooving Dmax D Dmin T BL T E H H *Right hand shown Designation Ins.SeatSizeL(inch) H(inch) B(inch) E(inch) Tmax(inch) Dmin(inch) Dmax(inch) Screw Clamp Screw Wrench TTFPL25.4-30-3 3 6.00 1.00 1.00 0.71 0.39 0.94 1.38 SHM5X0.8X16 L-W4 TTFPL25.4-35-3 3 6.00 1.00 1.00 0.71 0.39 1.14 1.57 SHM5X0.8X16 L-W4 TTFPL25.4-40-3 3 6.00 1.00 1.00 0.71 0.39 1.34 1.97 SHM5X0.8X16 L-W4 TTFPL25.4-50-3 3 6.00 1.00 1.00 0.71 0.59 1.73 2.36 SHM5X0.8X16 L-W4 TTFPL25.4-60-3 3 6.00 1.00 1.00 0.71 0.59 2.13 3.35 SHM5X0.8X16 L-W4 TTFPL25.4-30-4 4 6.00 1.00 1.00 0.71 0.47 0.87 1.57 SHM6X1X25 L-W5 TTFPL25.4-50-4 4 6.00 1.00 1.00 0.71 0.59 1.65 2.36 SHM6X1X25 L-W5 TTFPL25.4-60-4 4 6.00 1.00 1.00 0.71 0.59 2.05 3.35 SHM6X1X25 L-W5 TTFPL25.4-60-6 6 6.00 1.00 1.00 0.87 0.79 1.89 3.35 SHM8X1.25X25 L-W6 TTFPL25.4-85-6 6 6.00 1.00 1.00 0.87 0.79 2.87 5.91 SHM8X1.25X25 L-W6 TTFPL25.4-150-6 6 6.00 1.00 1.00 0.87 0.79 5.43 9.84 SHM8X1.25X25 L-W6 TTFPR25.4-30-3 3 6.00 1.00 1.00 0.71 0.39 0.94 1.38 SHM5X0.8X25 L-W4 TTFPR25.4-35-3 3 6.00 1.00 1.00 0.71 0.39 1.14 1.57 SHM5X0.8X16 L-W4 TTFPR25.4-40-3 3 6.00 1.00 1.00 0.71 0.39 1.34 1.97 SHM5X0.8X16 L-W4 TTFPR25.4-50-3 3 6.00 1.00 1.00 0.71 0.59 1.73 2.36 SHM5X0.8X16 L-W4 TTFPR25.4-60-3 3 6.00 1.00 1.00 0.71 0.59 2.13 3.35 SHM5X0.8X25 L-W4 TTFPR25.4-30-4 4 6.00 1.00 1.00 0.71 0.47 0.87 1.57 SHM6X1X25 L-W5 TTFPR25.4-40-4 4 6.00 1.00 1.00 0.71 0.59 1.26 1.97 SHM6X1X25 L-W5 TTFPR25.4-50-4 4 6.00 1.00 1.00 0.71 0.59 1.65 2.36 SHM6X1X25 L-W5 TTFPR25.4-60-4 4 6.00 1.00 1.00 0.71 0.59 2.05 3.35 SHM6X1X25 L-W5 TTFPR25.4-60-6 6 6.00 1.00 1.00 0.87 0.79 1.89 3.35 SHM8X1.25X25 L-W6 TTFPR25.4-85-6 6 6.00 1.00 1.00 0.87 0.79 2.87 5.91 SHM8X1.25X25 L-W6 TTFPR25.4-150-6 6 6.00 1.00 1.00 0.87 0.79 5.43 9.84 SHM8X1.25X25 L-W6 Use inserts TDC/TSC*, TDJ/TSJ*, TDXU, TDT, TDFT, see pages 1274 - 1288. *Grooving only • INSERT INITIAL MIN. DIA. FOR FACE GROOVING Insert Min. Diameter Remark TDC/J 3 2.52 TDC/J 4 1.26 Use TDFT or TDC/J 5 1.97 TDXU type if TDC/J 6 1.89 machining TDT 3 1.73 diameter is smaller than TDT 4 1.65 Dmin. TDT 5 1.97 TDT 6 1.89 1326
